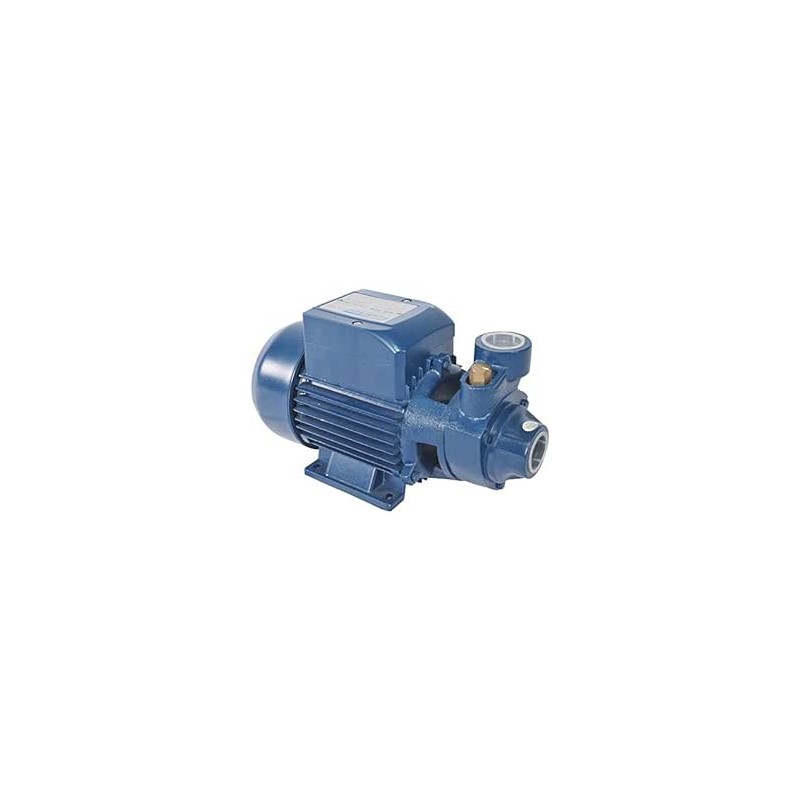

QB-60 Single-Phase Peripheral Water Pump 0.5 HP | 230V Domestic Pressure Pump

Applications:

Peripheral volumetric electric pump, suitable for developing notable pressures, with a modest flow rate and power.

Useful in small pressure groups, feeding coffee machines, etc.

Simplicity and economy for domestic applications.

Materials:

Pump body and support in cast iron, shaft in stainless steel, turbine in stamped brass.

Feature:

Shaft sealing: mechanical seal in ceramic-graphite.

Maximum pressure: 6 bar.

Maximum water temperature 60°C.

Maximum suction height: 7 mca (with foot valve).

Single-phase motors incorporate thermoampere protection.

Aspiration-impulsion: 1''.

Product features:

• Shaft sealing: mechanical seal in ceramic-graphite.

• Maximum pressure: 6 bar.

• Maximum water temperature 60°C.

• Maximum suction height: 7 mca (with foot valve).

Frequently Asked Questions:

What are the materials used to manufacture the electric pump?
The manufacturing materials include a cast iron pump body and support, a stainless steel shaft, and a stamped brass turbine.

What is the maximum pressure the pump can reach?
The maximum pressure that the pump can reach is 6 bar.

What is the maximum water temperature that the electric pump can handle?
The maximum water temperature it can handle is 60°C.

What protection do single-phase motors have?
Single-phase motors incorporate thermoampere protection.

What is the maximum suction height of the pump?
The maximum suction height is 7 mca (with foot valve).
