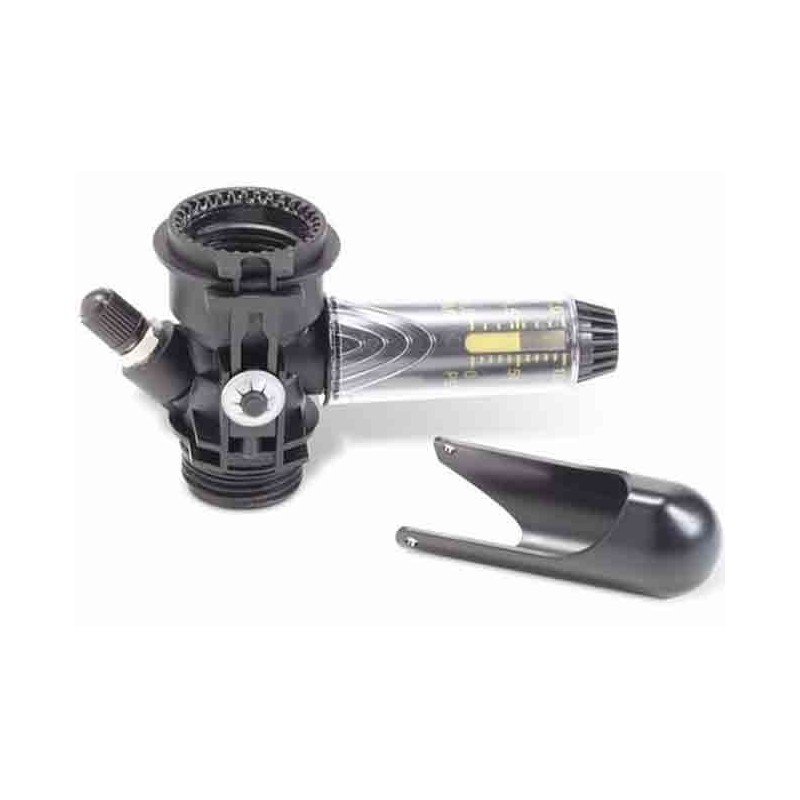

Rain Bird PRSDial Pressure Regulator | Quick Pressure Adjustment for PGA, PEB, PESB, BPE and BPES Solenoid Valves
€108.95
Impuestos incluidos
It regulates the outlet pressure of the solenoid valve regardless of the inlet pressure. It adjusts very quickly and easily. The regulator fits Rain Bird PGA, PEB, PESB, BPE, and BPES series valves.
• Regulates and maintains a constant outlet pressure between 1.04 and 6.90 bar in ±0.21 bar.
• The detented adjustment knob allows fine adjustment in 0.02 bar increments. The dial cartridge is quick, easy, and precise to install and adjust.
Specs
• Pressure: up to 6.90 bar*
• Regulation: 15 to 100 psi (1.04 to 6.90 bar)
• Accuracy: ±3 psi (±0.21 bar)
• Flow rate: see table
* Although the PRS-Dial unit can withstand pressures up to 13.80 bar, precise pressure regulation can only be maintained up to 6.90 bar.
Rain Bird PRSDial Pressure Regulator | Quick Pressure Adjustment for PGA, PEB, PESB, BPE and BPES Solenoid Valves
It regulates the outlet pressure of the solenoid valve regardless of the inlet pressure. It adjusts very quickly and easily. The regulator fits Rain Bird PGA, PEB, PESB, BPE, and BPES series valves.
Product features:
- Peak reduction improvements reduce water hammer.
- The ergonomic design with a protective cover minimizes the risk of vandalism.
- The airtight dial cartridge eliminates misting and caking.
- Easy to install in the field. The PRS-Dial screws between the solenoid and the adapter.
Frequently Asked Questions:
How do you adjust the outlet pressure on the Rain Bird PRSDial regulator?
It adjusts very quickly and easily using the adjustment knob with a retainer.
Which valves are compatible with the PRSDial pressure regulator?
The regulator fits Rain Bird PGA, PEB, PESB, BPE and BPES series valves.
What outlet pressure does the PRSDial regulator maintain constant?
It regulates and maintains a constant outlet pressure between 1.04 and 6.90 bar in ±0.21 bar.
What material is the PRSDial Rain Bird pressure regulator made of?
Nylon filled with corrosion-resistant fiberglass for maximum strength.
How do I install the Rain Bird PRSDial pressure regulator?
It installs and adjusts quickly, easily and precisely.
PRSDial
375 Items
Data sheet
You might also like
16 other products in the same category:
It regulates the outlet pressure of the solenoid valve regardless of the inlet pressure. It adjusts very quickly and easily. The regulator fits Rain Bird PGA, PEB, PESB, BPE, and BPES series valves.
• Regulates and maintains a constant outlet pressure between 1.04 and 6.90 bar in ±0.21 bar.
• The detented adjustment knob allows fine adjustment in 0.02 bar increments. The dial cartridge is quick, easy, and precise to install and adjust.
Specs
• Pressure: up to 6.90 bar*
• Regulation: 15 to 100 psi (1.04 to 6.90 bar)
• Accuracy: ±3 psi (±0.21 bar)
• Flow rate: see table
* Although the PRS-Dial unit can withstand pressures up to 13.80 bar, precise pressure regulation can only be maintained up to 6.90 bar.
Rain Bird PRSDial Pressure Regulator | Quick Pressure Adjustment for PGA, PEB, PESB, BPE and BPES Solenoid Valves
€108.95
Impuestos incluidos
Muy buena calidad
Aguanta perfectamente la presión, fácil y sencillo de ajustar. La información con el proveedor ha sido muy correcta y muy bien explicita
