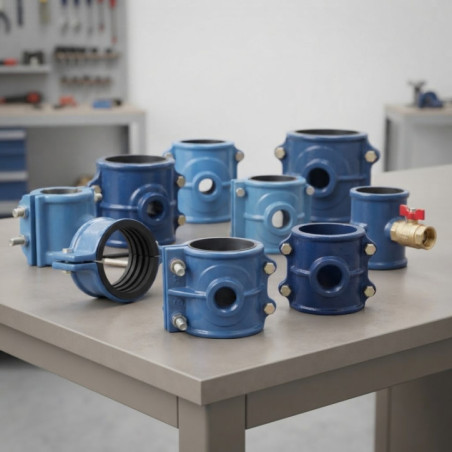

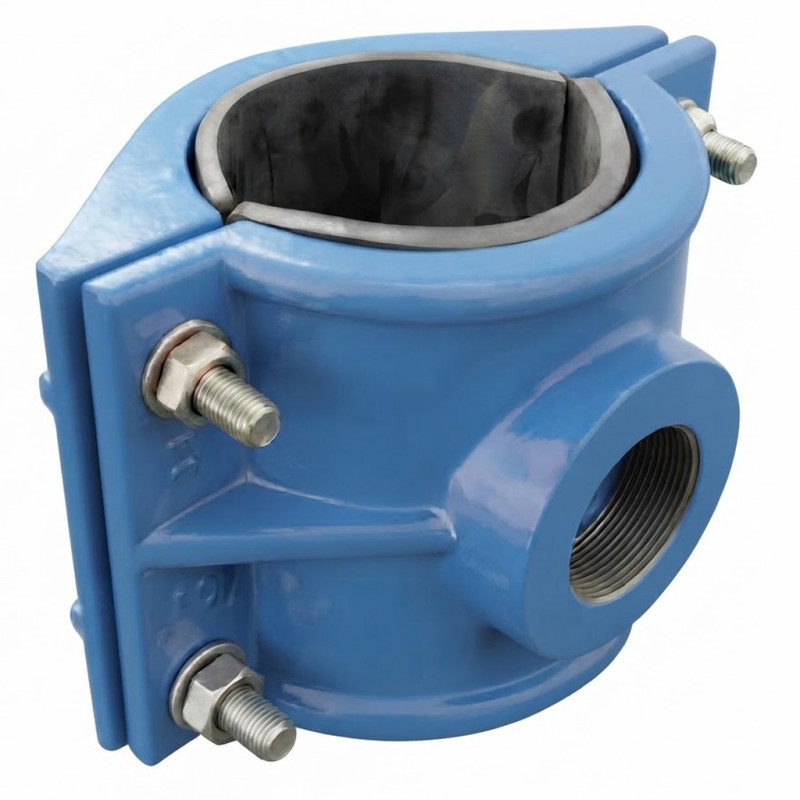

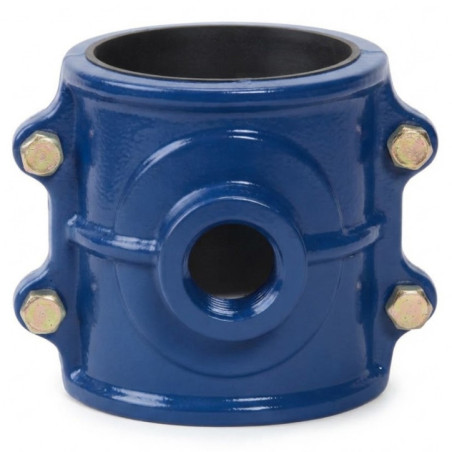

The 125 mm x 1" ductile iron collar is the ultimate professional solution for efficient connections, branch lines, and repairs in water supply networks, agricultural irrigation systems, and industrial installations. Specifically designed for polyethylene (PE) and PVC pipes, this fitting ensures a robust, watertight, and durable joint under any working conditions.

Manufactured from high-quality ductile iron and protected with an epoxy coating, this collar offers exceptional resistance to corrosion, impacts, and chemical agents present in the subsoil. Its four-bolt tightening system ensures even pressure distribution around the entire perimeter of the pipe, preventing deformation and guaranteeing a perfect seal even under high working pressures. Its ease of assembly makes it the ideal component for both new installations and urgent maintenance tasks.

Technical Specifications

• Product type: On-load tapping collar / Repair clamp.


• Main diameter: 125 mm (suitable for polyethylene and PVC pipes).


• Outlet thread: 1 inch (1").


• Manufacturing material: High mechanical strength ductile iron.


• Corrosion protection: Epoxy coating applied by thermofusion.


• Fixing system: 4 high-strength screws for secure and symmetrical tightening.


• Product reference: BA24466.

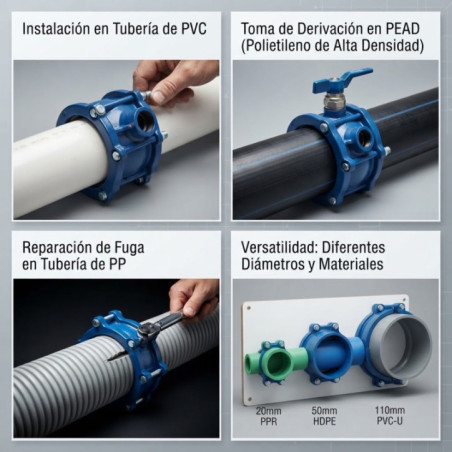

• Applications: Drinking water supply networks, drip and sprinkler irrigation systems, and industrial pipelines.

Frequently Asked Questions

What type of pipes is this collar compatible with?

This model is designed for installation on polyethylene (PE) and PVC pipes with an outside diameter of 125 mm, offering a perfect and secure fit on both materials.

What advantages does epoxy coating offer?

The epoxy coating protects the ductile iron body from oxidation and corrosion, significantly extending the product's lifespan even when installed buried or in humid environments.

Can it be used for drinking water?

Yes, the manufacturing materials and epoxy finish meet the quality standards required to be in contact with water intended for human consumption.

What is needed to perform the installation?

Only a suitable wrench is required to tighten the four screws and the tube drilling tool once the collar is fixed, ensuring quick assembly without the need for complex equipment.
