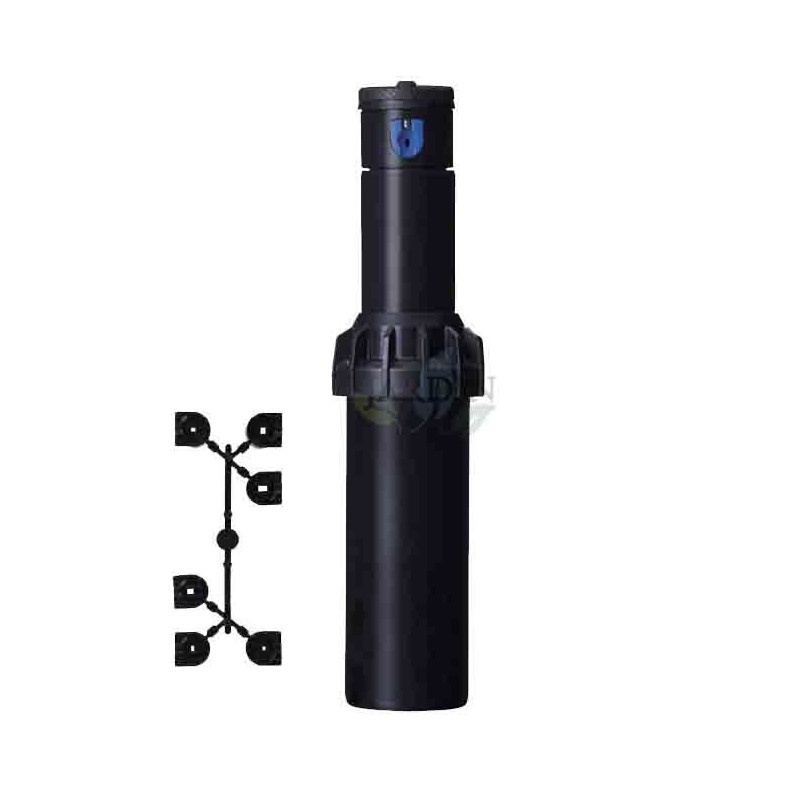

Hunter I-20-04 3/4" Irrigation Sprinkler | Pop-Up Garden Sprinkler 5.2-14.3 m | Professional Lawn Sprinkler

3/4 sprinkler with automatic arc return, range 5.2 to 14.3 m and adjustable irrigation angle.

Designed for small and medium-sized residential and public automatic irrigation systems. High-performance sprinkler with the versatility and efficiency needed for any installation.

Product features:

• Radius: from 5.2 to 14.3 m.

• Flow rate: from 0.07 to 3.23 m3/h; from 1.2 to 53.8 l/min.

• Recommended pressure range: 1.7 to 4.5 bar; 170 to 450 kPa.

• Operating pressure range: 1.4 to 7 bar; 140 to 700 kPa.

• Rainfall: approx. 10 mm/h

• Nozzle trajectory: Est. = 25 degrees, low angle = 13 degrees.

Frequently Asked Questions:

What is the maximum range of this turbine sprinkler?
The maximum range of this turbine sprinkler is 14.3 meters.

What is the maximum flow rate this sprinkler can handle?
The maximum flow rate that this sprinkler can handle is 3.23 m3/ho, or 53.8 liters per minute.

What pressure is recommended for the optimal operation of this turbine sprinkler?
A pressure of 1.7 to 4.5 bar is recommended for the optimal operation of this turbine sprinkler.

What is the approximate rainfall provided by this sprinkler?
This sprinkler provides an approximate rainfall of 10 mm/h.

What is the total height of this turbine sprinkler?
The total height of this turbine sprinkler is 19 cm.
