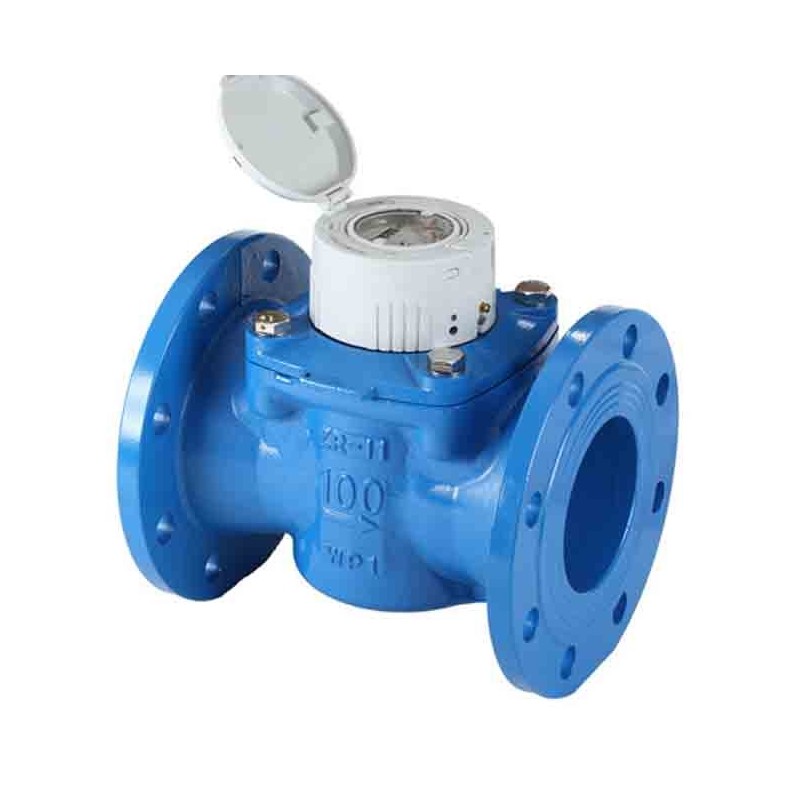

Woltman cold water meter DN 80 - 3 flange

High-volume water meter with turbine shaft parallel to the flow direction. The SUINGA Woltman parallel high-volume water meter is specially designed for high flow rates with a predominantly constant flow profile. Thanks to its robust construction, the meter can cover a wide measuring range and is very stable in terms of measurement accuracy over the long term. It is therefore suitable for virtually all measuring tasks in the supply and distribution of drinking water. The housing has been optimised in terms of flow technology, and the measuring insert has been redesigned as a replaceable metrological unit in accordance with MID. In combination with the latest turbine holder, homogeneous and long-term stable error curves have been achieved. EC certificate of conformity according to directive 2014/32/EU (MID) for residential or industrial use. Ready-equipped for telecommunications via pulse transmitter.

Product Features:

• Available from DN50 2 to DN500 20.


• High volume water meter with turbine shaft parallel to the flow direction


• CE Certificate of Conformity according to directive 2014/32/EU (MID) for residential or industrial use


• Pre-equipped for telecommunications using pulse transmitter

Frequently Asked Questions:

What is the Woltman cold water meter DN 80 - 3 flange used for?
It is used to measure large volumes of water with precision and long-term stability in residential and industrial applications.

What certifications does the Woltman cold water meter DN 80 - 3 flange have?
It is certified with CE Conformity according to directive 2014/32 / EU (MID) to ensure its proper use in different environments.

What advantages does the Woltman DN80 - 3 model offer?
The DN80 - 3 model offers a length of 22.5 cm, a flow rate of 63 m3/h and a flange connection for easy installation.

How can the Woltman cold water meter DN 80 - 3 flange communicate?
It is pre-equipped for telecommunications using a pulse transmitter that facilitates the transmission of measurement data.

What additional measurements are available for the Woltman cold water meter?
For higher measurements or technical questions, you can consult the specialized technical team.
