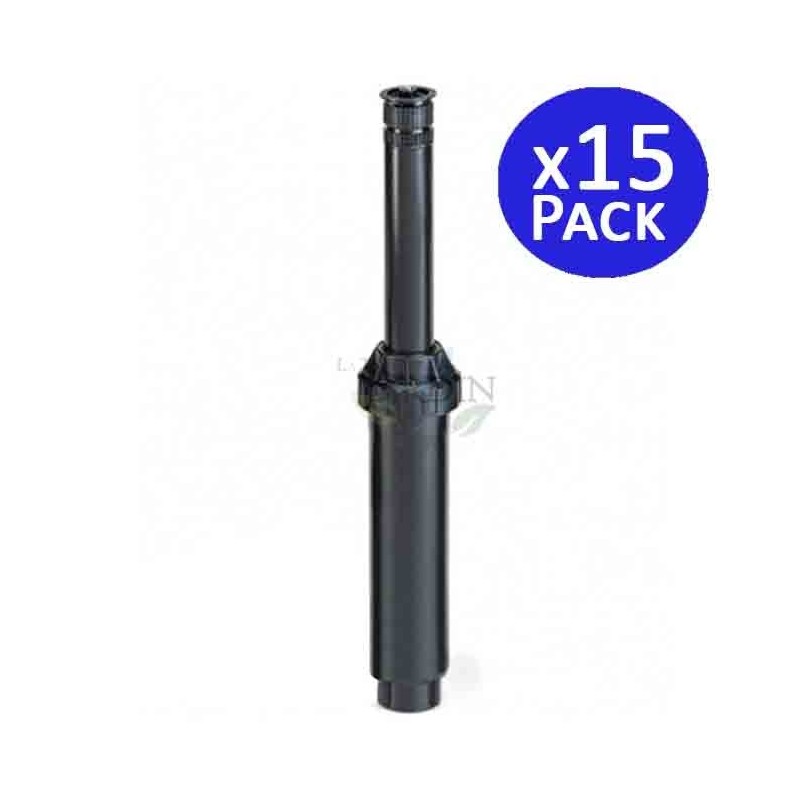

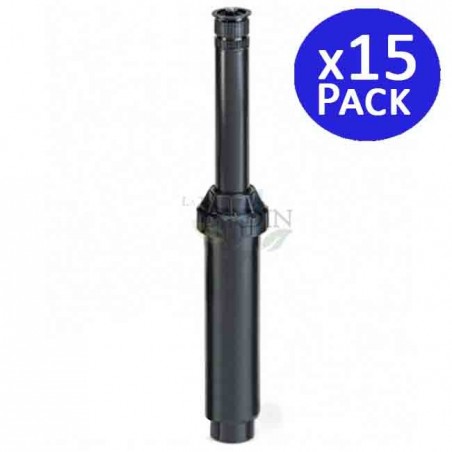

Rain Bird US415HE Diffuser

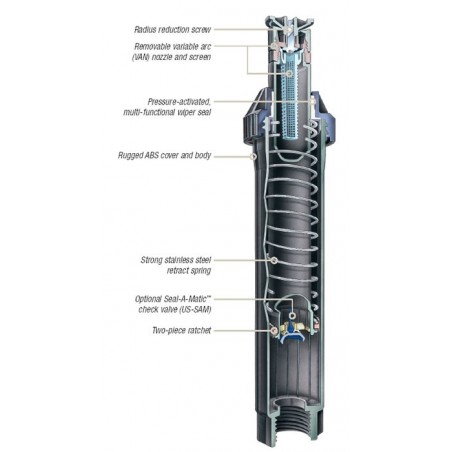

Rain Bird US415HE 15-foot spray range with 0-360° adjustment (15-Pack). Pressure-activated seal prevents flow loss and water waste. Prevents debris from entering when the stem retracts. Durable two-piece ratchet mechanism allows for quick and easy watering pattern adjustment. Heavy-duty cap and body provide durability under high pressure or system surge conditions.

Product Features:

• Small top, making the diffuser virtually invisible once installed.


• For added convenience, these diffusers are supplied with the VAN nozzles installed.


• Time savings and faster installation: Adjustable Nozzles (VAN) that allow maximum flexibility.


• UNI-Spray™ spray heads can accommodate all Rain Bird® nozzles and accessories, simplifying inventory management.


• The VAN nozzle and filter are easily removable for cleaning.


• The internal parts can be removed from the top, making maintenance easier.


• Scope adjustment screw.

Frequently Asked Questions:

What is the maximum reach of the Rain Bird US415HE Sprayer?
The maximum reach of the Rain Bird US415HE Sprayer is 4.5 meters.

Can the watering angles of this diffuser be adjusted?
Yes, the watering angles are adjustable from 0 to 360º.

Does it come with interchangeable nozzles?
Yes, the Rain Bird US415HE Sprayer comes with interchangeable nozzles for added versatility.

What is the recommended operating pressure for this diffuser?
The recommended operating pressure is 1 to 2.1 bar.

How high is the diffuser body?
The height of the diffuser body is 15 cm.
