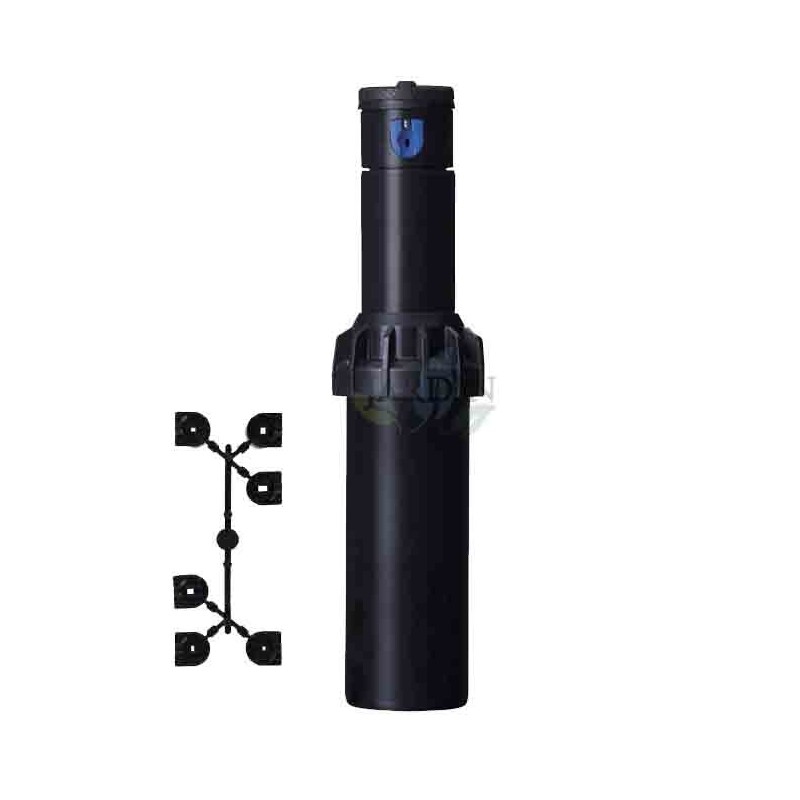

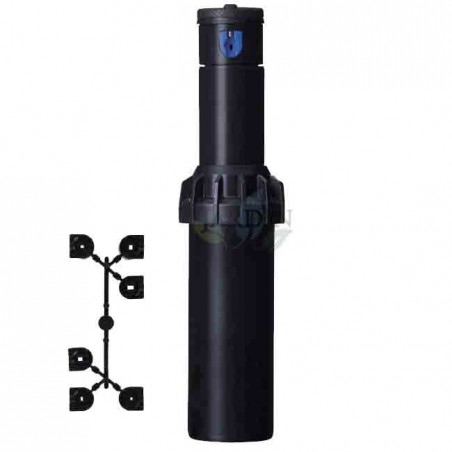

Aspersor turbina I-20-04 Hunter 5,2 a 14,3 m

3/4 sprinkler with automatic arc return, range 5.2 to 14.3 m and adjustable irrigation angle.

Designed for small and medium-sized residential and public automatic irrigation installations. High-performance sprinkler with the diversity and efficiency required for any installation.

Product Features:

• Radius:  5.2 to 14.3  m.


• Flow rate: from 0.07 to 3.23 m3/h; from 1.2 to 53.8 l/min.


• Recommended pressure range: 1.7 to 4.5 bar; 170 to 450 kPa.


• Operating pressure range: 1.4 to 7 bar; 140 to 700 kPa.


• Rainfall: approx. 10 mm/h.


• Nozzle trajectory: Std. = 25 degrees, low angle = 13 degrees.

Frequently Asked Questions:

*What is the maximum reach of this turbine sprinkler ?*
*The maximum reach of this turbine sprinkler is 14.3 meters.*

*What is the maximum flow rate this sprinkler can handle?*
*The maximum flow rate this sprinkler can handle is 3.23 m3/h or 53.8 liters per minute.*

*What pressure is recommended for optimal operation of this turbine sprinkler ?*
*A pressure of 1.7 to 4.5 bar is recommended for optimal operation of this turbine sprinkler .*

*What is the approximate rainfall provided by this sprinkler?*
*This sprinkler provides an approximate rainfall of 10 mm/h.*

*What is the total height of this turbine sprinkler ?*
*The total height of this turbine sprinkler is 19 cm.*
