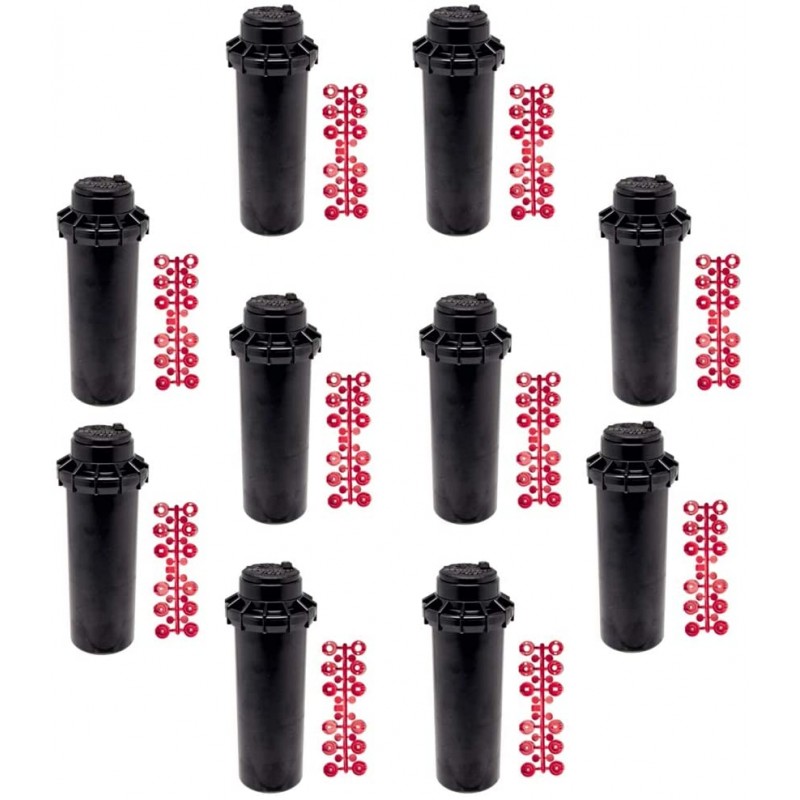

     Pack 20 x Hunter PGP-ADJ Ultra 3/4" irrigation sprinkler
     Pack 20 x Hunter PGP-ADJ Ultra 3/4" irrigation sprinkler
     Pack 20 x Hunter PGP-ADJ Ultra 3/4" irrigation sprinkler
     Pack 20 x Hunter PGP-ADJ Ultra 3/4" irrigation sprinkler

    Pack 20 x Hunter PGP-ADJ Ultra 3/4" irrigation sprinkler

    Review (0)
    €102.82
    Impuestos incluidos

    5 3/4 "sprinklers with a range of 6.4 to 15.8 m and an adjustable angle of irrigation.

    Intended for small and medium-sized residential and public automatic irrigation installations. These sprinklers are designed to work at low pressure and flow with high performance in recycled water.

    Pack of 4 sprinklers.

    characteristics

    • Radio: de 6,4 a 15,8 m.
    • Flow rate: from 0.10 to 3.22 m3 / h; from 1.7 to 53.7 l / min.
    • Recommended pressure range: 1.7 to 4.5 bar; from 170 to 450 kPa.
    • Operating pressure range: 1.4 to 7 bar; 140 to 700 kPa.
    • Rainfall: 10 mm / h approx.
    • Nozzle Path: Std = 25 degrees, Low Angle = 13 degrees.

    Dimensions

    • Total height 19 cm.
    • Emergency height 10 cm.
    • Exposed diameter: 4.5 cm.
    • 3/4 "connection

    Cantidad :

      Hunter PGP-ADJ 3/4" Irrigation Sprinkler, 21-51 ft Range

      The  Hunter PGP 3/4 irrigation sprinkler  has a range of 6.4 to 15.8 m and an adjustable irrigation angle.

      Intended for small and medium-sized residential and public automatic irrigation installations. These  PGP-ADJ irrigation sprinklers  are designed to work at low pressure and flow with high performance in recycled water.

      Product Features:

      • Radius: 6.4 to 15.8 m.
      • Flow rate: from 0.10 to 3.22 m3/h; from 1.7 to 53.7 l/min.
      • Recommended pressure range: 1.7 to 4.5 bar; 170 to 450 kPa.
      • Operating pressure range: 1.4 to 7 bar; 140 to 700 kPa.
      • Rainfall: approx. 10 mm/h.
      • Nozzle trajectory: Std. = 25 degrees, low angle = 13 degrees.

      Frequently Asked Questions:

      1. How do I adjust the radius of the Hunter PGP sprinkler?
      To adjust the radius of the  Hunter PGP sprinkler , you will need a flat-head screwdriver. Locate the arc adjustment screw on the top of the sprinkler. Turn the screw clockwise to decrease the radius and counterclockwise to increase the radius. Remember to adjust gradually and test water after each adjustment to ensure the throw is as desired.

      2. What water pressure is required for optimal operation of the Hunter PGP sprinkler ?
      The  Hunter PGP sprinkler  works best with water pressure between 30 and 70 psi (pounds per square inch). Pressure less than 30 psi may result in insufficient watering range, while pressure greater than 70 psi may damage the sprinkler or cause uneven water distribution.

      3. How do I adjust the sprinkler arc?
      To adjust the arc on your  Hunter PGP sprinkler , first make sure the sprinkler is in the home position. Use the provided adjustment wrench or a screwdriver to turn the arc adjustment screw, located on the top of the sprinkler. Turn clockwise to increase the arc and counterclockwise to decrease the arc. The PGP sprinkler allows arc adjustment from 40 to 360 degrees, providing flexibility for different watering areas.

      4. What should I do if the sprinkler does not fully retract after use?
      If the Hunter PGP sprinkler does not fully retract, it may be due to dirt or debris in the mechanism. Remove the sprinkler cover and filter and clean out any debris you find. Also check the water pressure, as insufficient pressure could cause the sprinkler to not retract properly. If the problem persists after cleaning and checking the pressure, it may be necessary to replace the sprinkler or consult a professional.

      5. How can I stop water from coming out of my Hunter PGP sprinkler unevenly?
      If water is coming out of the sprinkler unevenly, the nozzles may be clogged or worn. First, turn off the irrigation system and remove the sprinkler nozzle. Clean out any visible debris or dirt and reinstall the nozzle. If the problem continues, check the nozzles and replace them if they are worn or damaged. Also, make sure the water pressure is within the recommended range, as incorrect pressure can cause uneven water distribution.

      6. How do I properly install a Hunter PGP sprinkler  in my yard?
      To install a  Hunter PGP sprinkler , first make sure the location is free of obstructions and the ground is level. Dig a hole large enough so that the body of the sprinkler will be flush with the ground when installed. Connect the sprinkler to the irrigation line using the appropriate adapter and make sure all connections are sealed tightly to prevent leaks. Then, backfill the hole with soil, compacting it around the sprinkler to keep it stable. Finally, adjust the sprinkler arc and radius as needed and turn on the irrigation system to test its operation.

      7. How do I know which nozzle is right for my Hunter PGP sprinkler?
      Choosing the right nozzle for your  Hunter PGP sprinkler  depends on several factors, including the size of the area you want to water, the water pressure available, and the type of plant or grass you have. Hunter offers a variety of nozzles with different precipitation rates and watering patterns. To choose the right nozzle, check the sprinkler specifications in the owner's manual or on the manufacturer's website. It's also helpful to measure the water pressure on your system and consider the maximum distance you need to cover. You can use a low-precipitation nozzle for areas with slopes or clay soil, and a high-precipitation nozzle for areas with sandy soil or plants that require more water.
