Filtration monobloc for in-ground and above-ground pools [Ø 500 mm - 10 m³/h]
€695.38
Impuestos incluidos
- 15 liter capacity skimmer with standard mouth and circular pressure cap for concrete pools.
- With anti-UV treatment in the parts that are not buried.
- Made of ABS, with gate float and clapper for flow regulation.
- Connections:
- Lower suction connection: internal thread 1½ ", external 2".
- Simultaneous connection to the drain: internal Ø 50 mm
- Upper connection for evacuation of excess water: Ø 40 mm
- Includes basket for leaf collecting.
- Recommended flow: 5 m³ / h
- It is recommended to install a skimmer for every 25 m² of water surface area.
- Made in Spain
Filtration monobloc for in-ground and above-ground pools [Ø 500 mm - 10 m³/h]

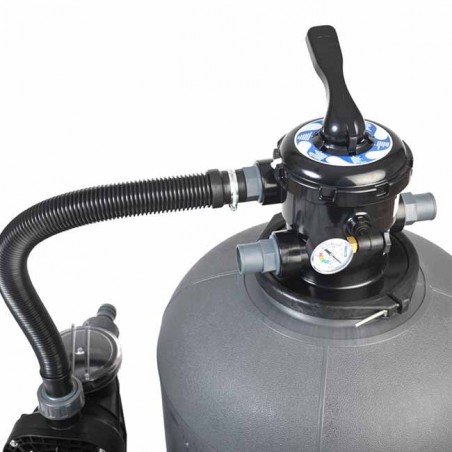

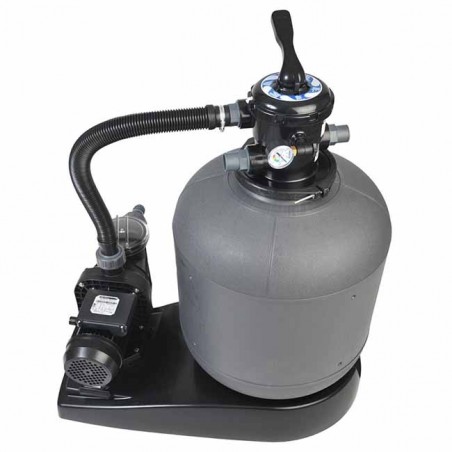

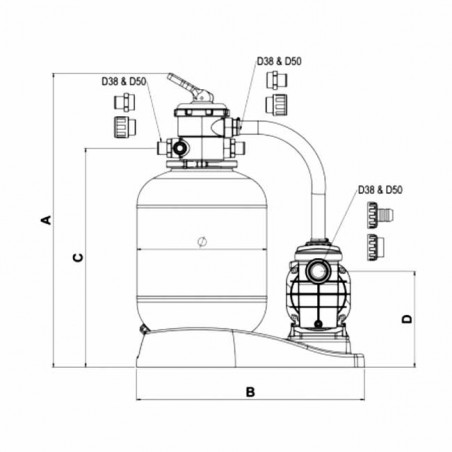

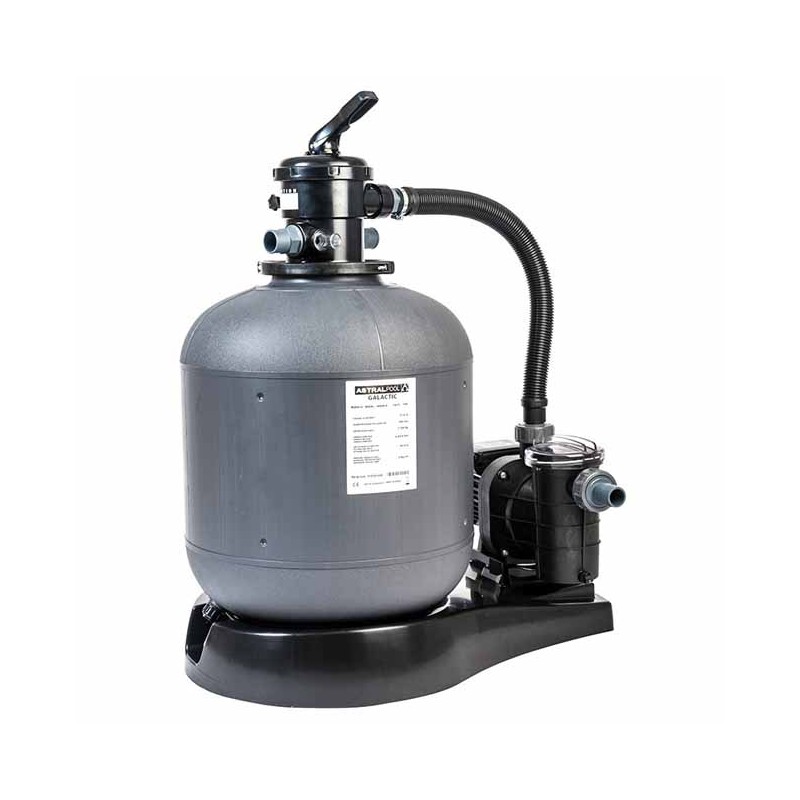

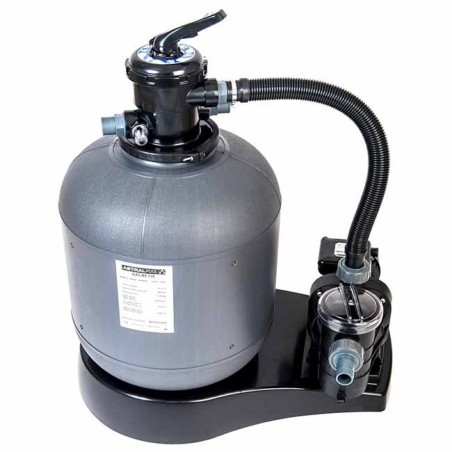

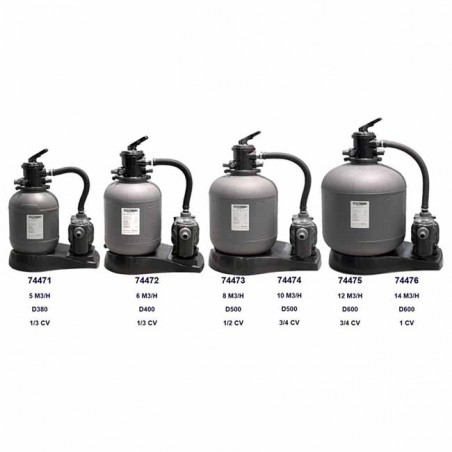

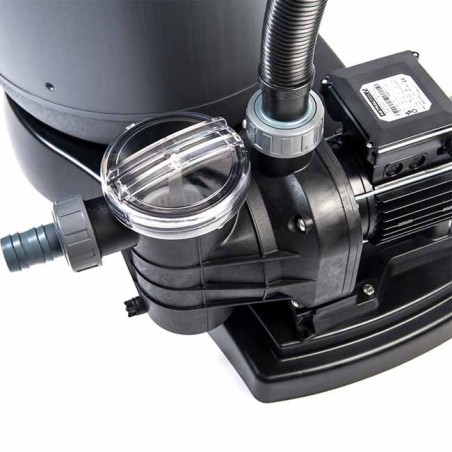

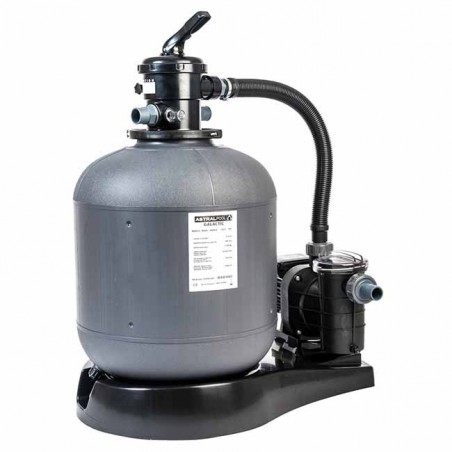

Monobloc filtration system for in-ground and above-ground pools. Includes blown sand filter with 6-way selector valve and compact self-priming filtration pump. Also includes 38 and 50 mm connections for maximum installation versatility. Available from Ø380 to Ø600 mm and various powers, to adapt to the water volume of each pool. Filter made of highly resistant thermoplastic material (high-density PE) moulded by blow-molding process, in elegant anthracite colour. 6-way selector valve (filtration, washing, rinsing, recirculation, emptying and closing) with pressure gauge, viewfinder, manual air bleed and water bleed. Compact self-priming pump with pre-filter, 3 metres of electric cable and plug. Flexible hose to connect pump and filter, fittings, base and accessories to fully assemble the filter unit. Includes D38 and D50 mm connection accessories for maximum installation flexibility (with PVC hoses or pipe). Working pressure: 1.2 bar. Maximum working pressure: 2.4 bar. Meets filtration requirements according to EN 16713-1.
Product Features:
- Blown sand filter
- 6 way selector valve
- Bomba autoaspirante compacta
- 38 and 50 mm connections
Frequently Asked Questions:
How to install the filtration monobloc?
The filtration monobloc is installed easily by following the instructions provided in the user manual.
What is the recommended working pressure for this product?
The recommended working pressure is 1.2 bar for optimal filtration system performance.
What regulations does this product comply with?
This product complies with the filtration requirements according to EN 16713-1 to ensure its quality and efficiency.
What does the filtration monobloc include?
The filtration monobloc includes a blown sand filter, a 6-way selector valve, a compact self-priming pump, 38 and 50 mm connections, and accessories for easy installation.
Is this product compatible with all types of pools?
Yes, this filtration monobloc is compatible with in-ground and above-ground pools, adapting to different water volumes.
FL74474
320 Artículos
Ficha técnica
- Color
- Blanco
Referencias específicas
