Filtration monobloc for in-ground and above-ground pools [Ø 400 mm - 6 m³/h]

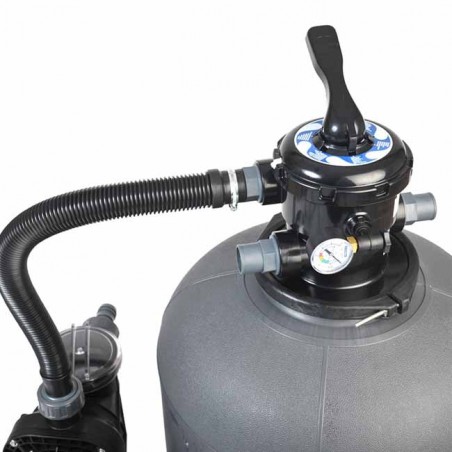

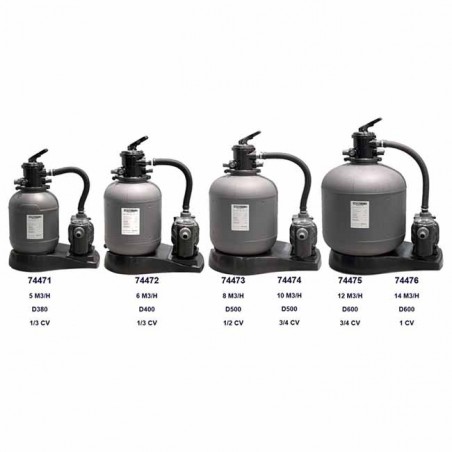

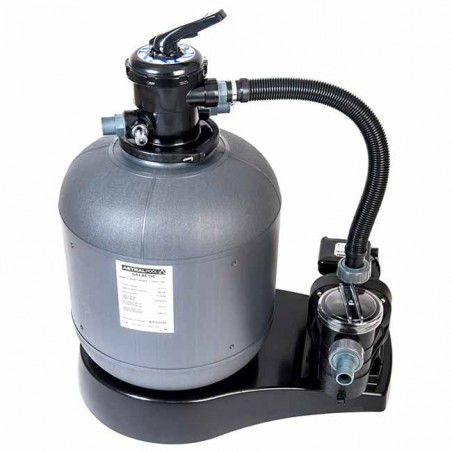

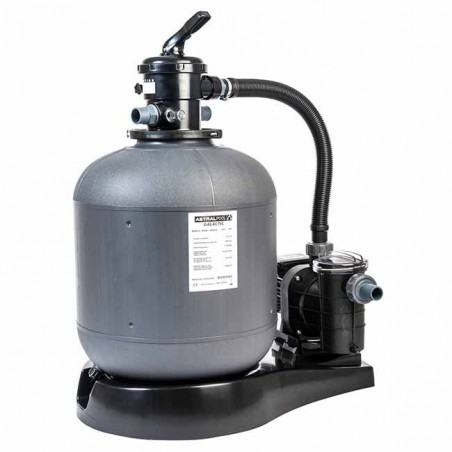

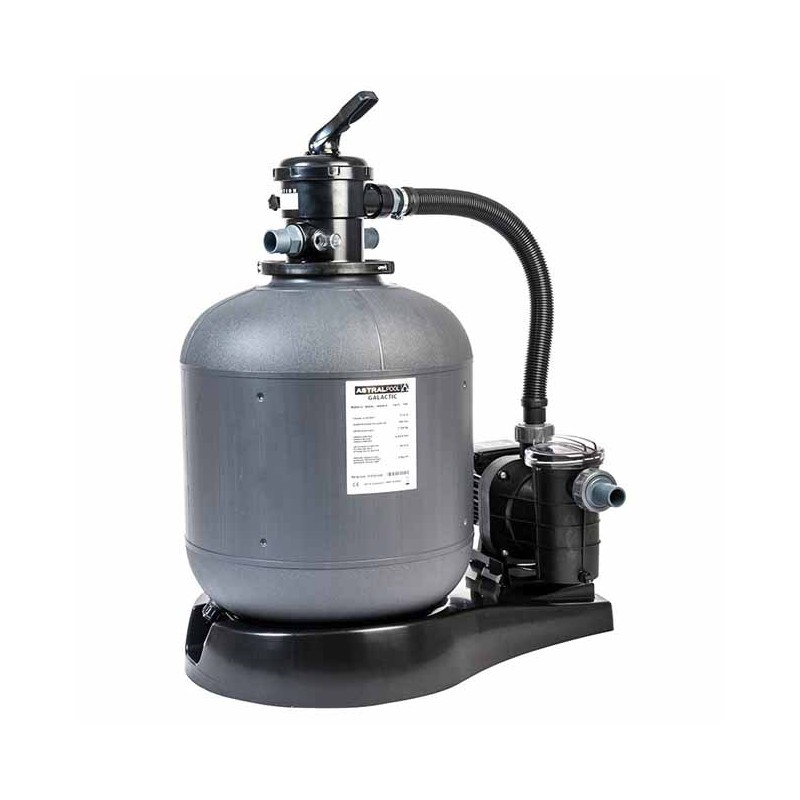

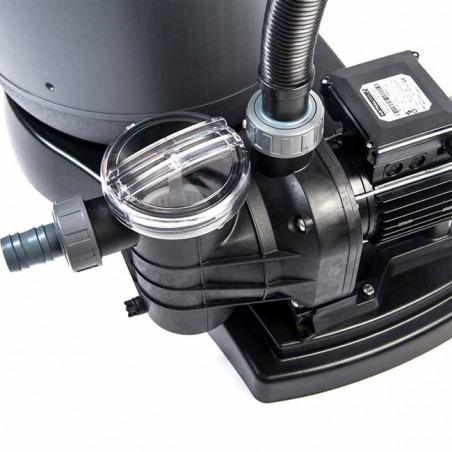

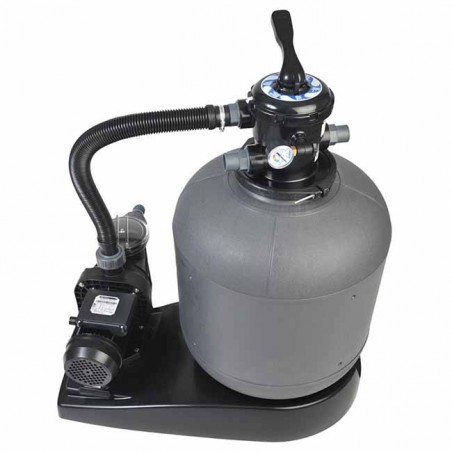

Monobloc filtration system for in-ground and above-ground pools. Includes blown sand filter with 6-way selector valve and compact self-priming filtration pump. Also includes 38 and 50 mm connections for maximum installation versatility. Available from Ø380 to Ø600 mm and various powers, to adapt to the water volume of each pool. Filter made of highly resistant thermoplastic material (high-density PE) moulded by blow-molding process, in elegant anthracite colour. 6-way selector valve (filtration, washing, rinsing, recirculation, emptying and closing) with pressure gauge, viewfinder, manual air bleed and water bleed. Compact self-priming pump with pre-filter, 3 metres of electric cable and plug. Flexible hose to connect pump and filter, fittings, base and accessories to fully assemble the filter unit. Includes D38 and D50 mm connection accessories for maximum installation flexibility (with PVC hoses or pipe). Working pressure: 1.2 bar. Maximum working pressure: 2.4 bar. Meets filtration requirements according to EN 16713-1.

Product Features:

• Blown sand filter
• 6 way selector valve
• Bomba autoaspirante compacta
• 38 and 50 mm connections

Frequently Asked Questions:

How to install the filtration monobloc in a pool?
To install the filtration monobloc in a pool, the instructions provided by the manufacturer must be followed, making sure to connect all the parts correctly.

What is the maximum working pressure of the filtration monobloc?
The maximum working pressure of the filtration monobloc is 2.4 bar, which guarantees efficient and safe operation.

What does the filtration monobloc include?
The filtration monobloc includes a blown sand filter, a 6-way selector valve, a compact self-priming pump, 38 and 50 mm connections, among other accessories necessary for its installation.

Does the filtration monobloc comply with any quality standards?
Yes, the filtration monobloc complies with the filtration requirements according to EN 16713-1, guaranteeing its quality and efficiency.

What material is used in the manufacture of the filtration monobloc?
The filtration monobloc is made of high-strength thermoplastic material (high-density PE) molded by a blow-molding process, making it durable and resistant.
