- New

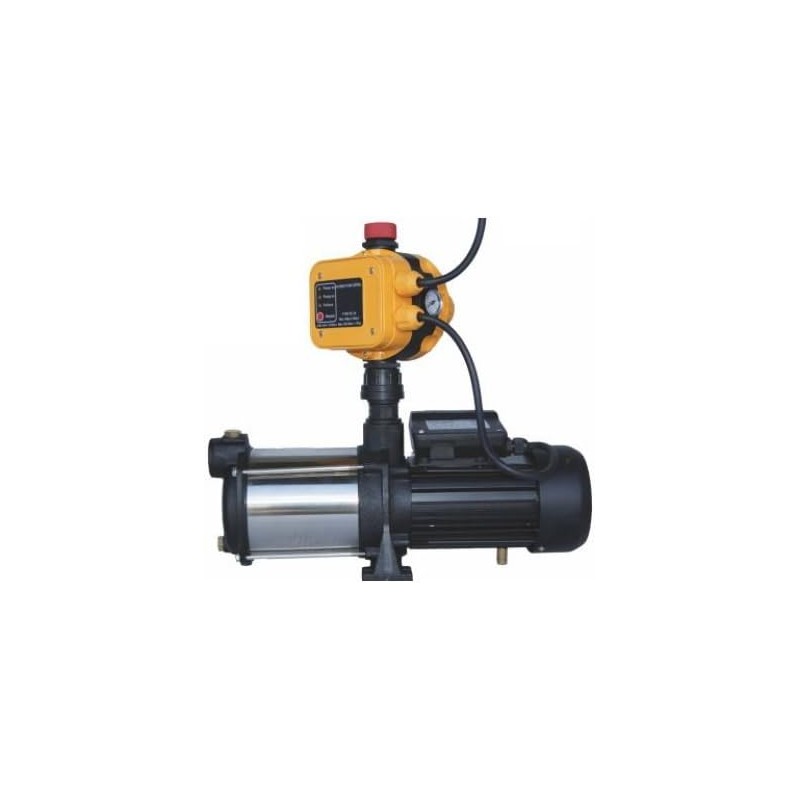

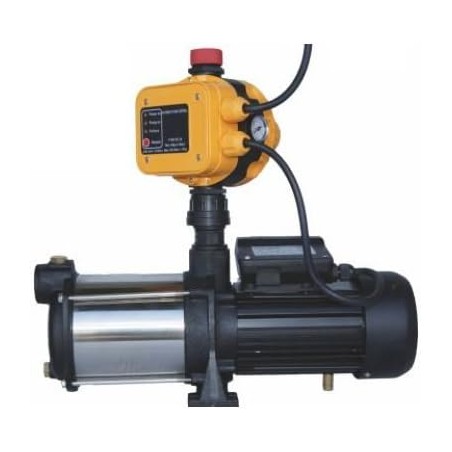

GP-HKF-MCP5 pressure group. Power 1.5CV. Maximum height 7m, 38 mca Average flow rate 4,000 l/h
€320.28
Impuestos incluidos
- Passage of solid bodies in suspension up to 40mm.
- Caudal hasta 400 l / min (24 m3 / h).
- Manometric height up to 11 meters.
- Type of hose connection 1 1/2 "
- Connection voltage 230.
Limits of use
- Depth up to 5 meters below water level (with power cord of adequate length).
- Maximum fluid temperature up to + 40ºC.
- Maximum emptying level up to 50 mm from the bottom.
- For continuous minimum immersion service: 240 mm.
Execution and safety standards
- The electric pump is supplied with a power cable and an external float switch for single-phase versions.
- Complies with all EU regulations: EN 60335-1, IEC 60335-1, CEI 61-150, EN 60034-1, IEC 60034-1, CEI 2-3.
Pressure group GP-HKF-MCP5
The equipment is supplied with cables and pressure regulator. Maximum height 7 mca Power 1.5 HP. Average flow rate 4,000 l/h, Maximum flow rate 15,000 l/h. Voltage 220V. Input and output 1.
Product Features:
- The equipment is supplied with cables and pressure regulator.
- Maximum height 7 mca
- Power 1.5 HP.
- Average flow rate 4,000 l/hr, Maximum flow rate 15,000 l/hr.
Frequently Asked Questions:
What is the power of this pressure group?
The power of this pressure group is 1.5 HP.
What is the maximum height it can reach?
The maximum height it can reach is 7 mca
Does it come with cables and a pressure regulator?
Yes, the equipment is supplied with cables and a pressure regulator.
What is the average and maximum flow rate?
The average flow rate is 4,000 l/h and the maximum flow rate is 15,000 l/h.
What is the operating voltage?
The operating voltage is 220V.
GP-HKF-MCP5
320 Items
Data sheet
- Color
- Negro
Specific References
