Brass check valve 1 1/4

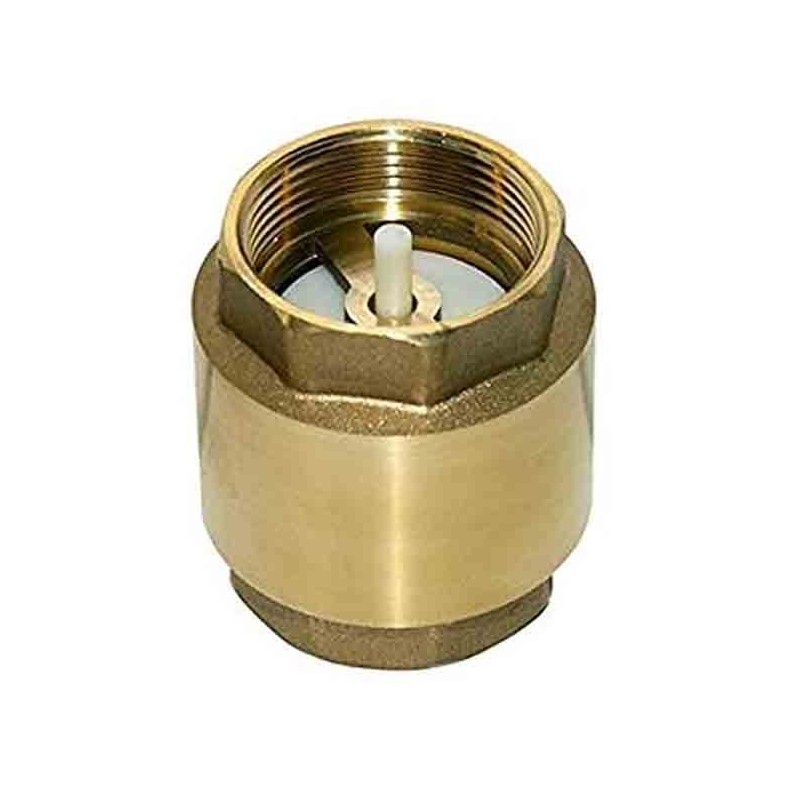

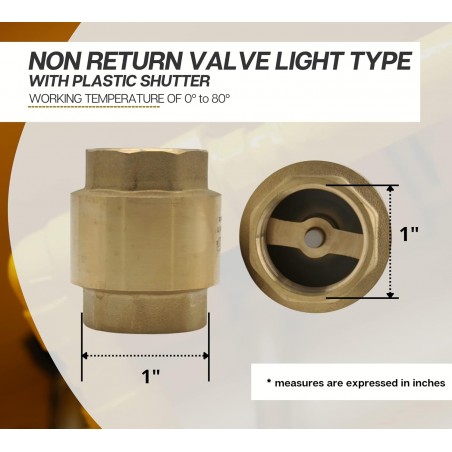

This brass check valve is an essential device in a hydraulic installation to prevent backflow of water and damage to your pump. Its main function is to block the return and regulate the flows in one direction of circulation. The valve body is equipped with a spring-loaded piston, which will automatically close your system and leave a large flow in the open position. This check valve is designed for both professional and domestic use. It can be used in commercial premises, industry, plumbing, heating, irrigation, water supply and distribution networks, etc. It is characterized by allowing its mounting in both horizontal, vertical and diagonal positions. In vertical and diagonal positions the flow direction must always be upwards. The indicator arrow on the valve will show you the flow direction. Lightweight check valve with plastic shutter. Reinforced body made of CW617N brass, NBR seal and threads according to ISO 228/1 (DIN 259). Being made of brass, this product is highly resistant to mechanical damage and corrosion as well as high temperatures. Therefore, it will serve you well for a long time without failing. The check valve withstands a working temperature of 0 to 80° and is especially indicated for cold water. Package list: 1 Check valve. Nominal pressure: 16 bar. Material: made of brass - durable material, can be used several times and serve for a long time. Respect the flow direction indicated on the body by the arrow. It is a practical and reliable solution to ensure good water circulation of a pressure check system, which always gives you the expected and permanent result.

Product Features:

• Essential device to prevent water backflow
• Body made of brass resistant to mechanical damage and corrosion
• Spring-loaded piston to automatically close the system
• Suitable for use in various plumbing applications

Frequently Asked Questions:

What is the main manufacturing material of this check valve?
The valve is made of brass, a highly resistant and durable material.

What type of installations can this valve be used in?
This check valve is suitable for professional and domestic installations, including plumbing, heating, irrigation, among others.

What is the recommended working temperature for this valve?
The check valve supports a working temperature of 0 to 80°, making it ideal for cold water.

Is there any indication of the flow direction included on the valve?
Yes, the valve has an indicator arrow that shows the flow direction for proper installation.

What is the nominal pressure that this check valve can withstand?
The nominal pressure of this valve is 16 bar, ensuring optimum performance in various applications.
