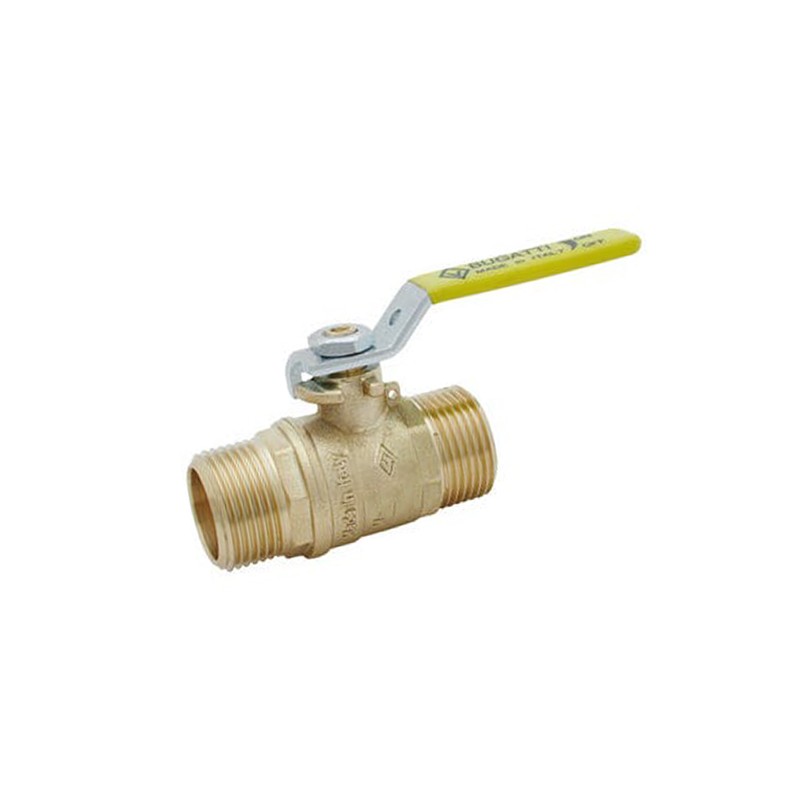

Brass gas stopcock 3/4'' - 25mm

Brass gas stopcock 3/4'' - 25mm is a ball valve approved for piped GAS, made of high quality brass.

Product Features:

• 3/4 upstream EM valve.
• Materials: The brass used complies with UNEEN 12165, UNE-EN 12164 and UNE-EN 1982 standards. The rubber seals used comply with EN 549. The lubricants used comply with EN 377 standard.
• TER series valves PN 5 for piped gas. These valves do not have a specific flow direction, so their position in the assembly is indistinct.
• English: Materials: The brass used complies with UNEEN 12165, UNE-EN 12164 and UNE-EN 1982 standards. The rubber seals used comply with EN 549. The lubricants used comply with EN 377. Technical characteristics: Keys suitable for gases of the 1st, 2nd and 3rd family. Maximum operating temperature: 60º C. Minimum operating temperature: - 40º C. Operating torque: see table above, PM column. Maximum working pressure: 5 bar.
• Used in 20mm pipes.

Frequently Asked Questions:

What is the material used to manufacture the stopcock?
The material used in the manufacture of the stopcock is high quality brass.

What is the maximum operating temperature of the valve?
The maximum operating temperature of the valve is 60º C.

What type of gases is this stopcock suitable for?
This stopcock is suitable for gases of the 1st, 2nd and 3rd family.

What is the maximum working pressure of the valve?
The maximum working pressure of the valve is 5 bar.

What pipe diameter is compatible with this stopcock?
This stopcock is compatible with 20mm pipes.
