- New
Stainless steel discharge nozzle, Ø 20 - Length 70 mm
€143.80
Impuestos incluidos
- 15 liter capacity skimmer with standard mouth and circular pressure cap for concrete pools.
- With anti-UV treatment in the parts that are not buried.
- Made of ABS, with gate float and clapper for flow regulation.
- Connections:
- Lower suction connection: internal thread 1½ ", external 2".
- Simultaneous connection to the drain: internal Ø 50 mm
- Upper connection for evacuation of excess water: Ø 40 mm
- Includes basket for leaf collecting.
- Recommended flow: 5 m³ / h
- It is recommended to install a skimmer for every 25 m² of water surface area.
- Made in Spain

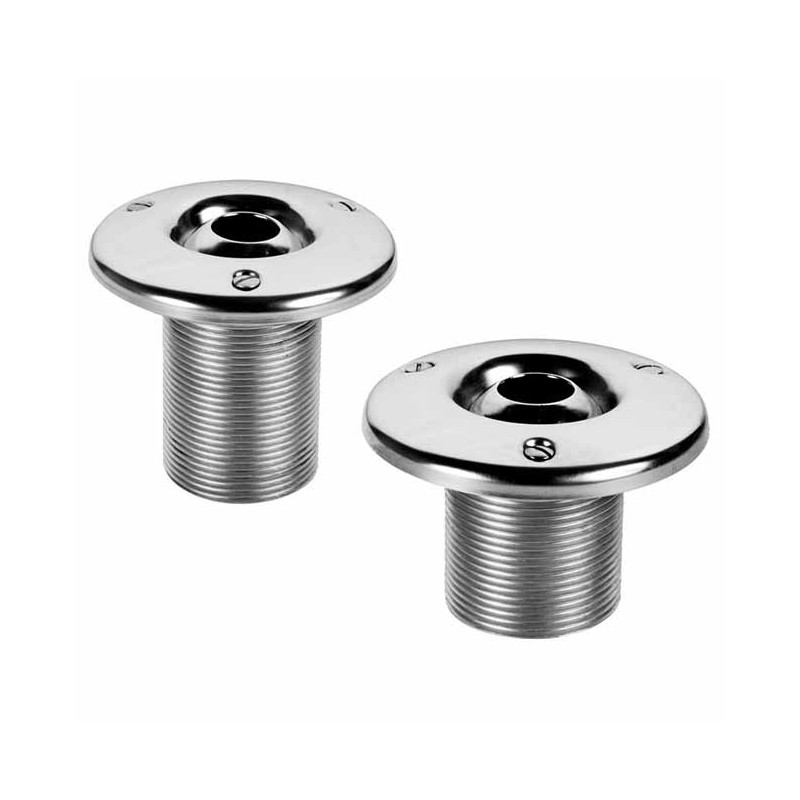

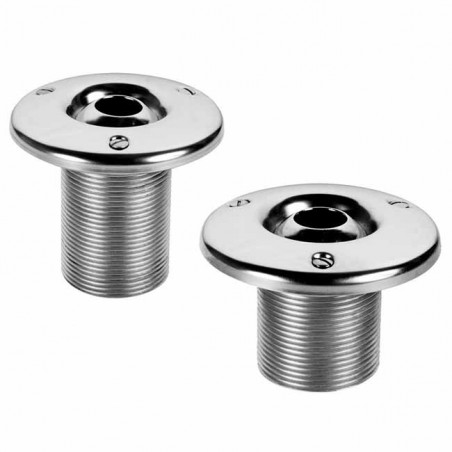

Stainless steel discharge nozzle , Ø 20 - Length 70 mm

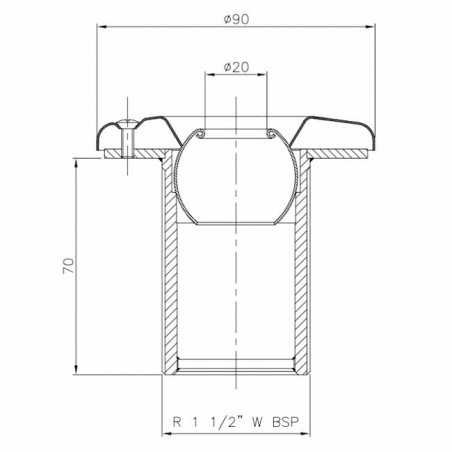

Stainless steel AISI-316 discharge nozzle . Available with Ø 20 ball, in lengths of 35, 50 and 70 mm. External thread 1½. Made of AISI-316L stainless steel . Recommended maximum flow rate: Ball Ø 20 mm: 4.5 m³/h
Product Features:
- Material: AISI-316 stainless steel
- Ball diameter: Ø 20 mm
- Length: 70 mm
- External thread: 1½
Frequently Asked Questions:
What is the nozzle made of?
The nozzle is made of AISI-316 stainless steel, a strong and durable material.
What is the maximum recommended flow rate for the Ø 20 mm ball?
The maximum recommended flow rate is 4.5 m³/h for the Ø 20 mm ball.
What is the length of the delivery nozzle?
The nozzle is 70 mm long.
Does it come with any specific thread?
Yes, the nozzle comes with a 1½ external thread.
What type of stainless steel is used in manufacturing?
AISI-316L stainless steel is used, a high quality and corrosion resistant material.
FL16326
320 Items
Data sheet
- Color
- Blanco
Specific References
No customer reviews for the moment.
