- New

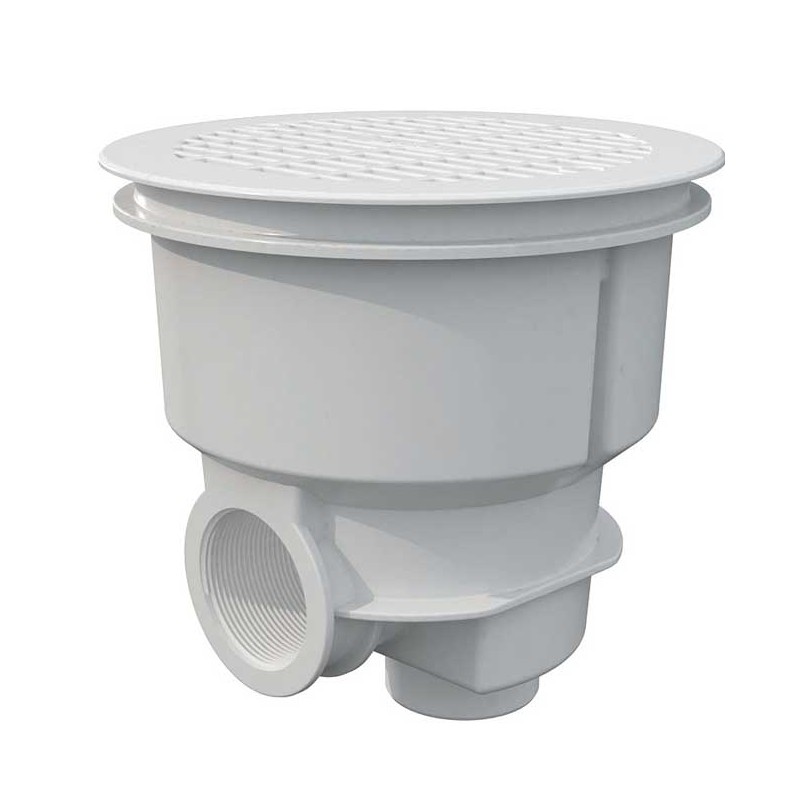

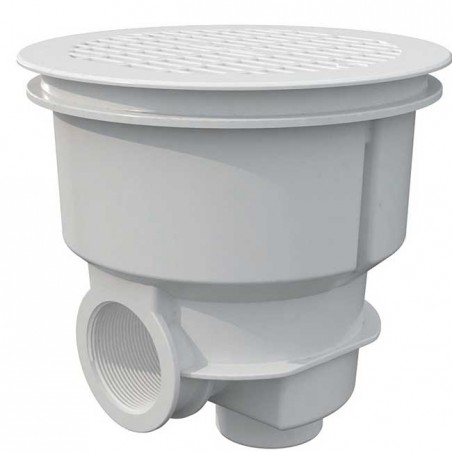

Norm drain with antivortex grate for concrete pools, white
€50.93
Impuestos incluidos
- 15 liter capacity skimmer with standard mouth and circular pressure cap for concrete pools.
- With anti-UV treatment in the parts that are not buried.
- Made of ABS, with gate float and clapper for flow regulation.
- Connections:
- Lower suction connection: internal thread 1½ ", external 2".
- Simultaneous connection to the drain: internal Ø 50 mm
- Upper connection for evacuation of excess water: Ø 40 mm
- Includes basket for leaf collecting.
- Recommended flow: 5 m³ / h
- It is recommended to install a skimmer for every 25 m² of water surface area.
- Made in Spain

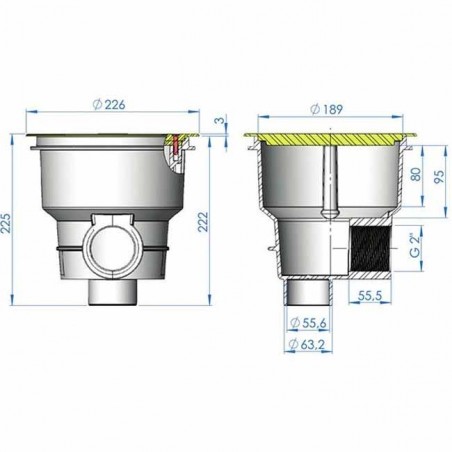

Norm drain with antivortex grid for concrete pools, white
Drain with antivortex grid for concrete pools.
Compliant with European standards EN-13451-1 and EN-13451-3.
Supplied with antivortex grid.
The antivortex grid performs a type of lateral suction that prevents the formation of vortexes.
Made of ABS with anti-UV treatment, 2 side outlet connections and bottom outlet with semi-die-cut adapted for connection of hydrostatic valve and drainage tube.
Maximum suction flow rate: 15 m³/h
Product Features:
- Compliant with European standards EN-13451-1 and EN-13451-3
- Anti-vortex grid to prevent swirls
- Made of ABS with anti-UV treatment
- Maximum suction flow rate of 15 m³/h
Frequently Asked Questions:
How does the antivortex grid prevent the formation of vortices?
The antivortex grid performs a type of lateral suction that prevents the formation of vortices.
What is the maximum suction flow rate of the sump?
The maximum suction flow rate is 15 m³/h.
What standards does the Norm drain comply with?
Compliant with European standards EN-13451-1 and EN-13451-3.
What material is the drain made of?
Made of ABS with anti-UV treatment.
What connections does the drain include?
2 side outlet connections and bottom outlet with semi-cutout adapted for connection of hydrostatic valve and drainage pipe.
FL56379
318 Items
Data sheet
- Color
- Blanco
Specific References
No customer reviews for the moment.
