- New
Electroválvula 100HV 1" 24V Rain Bird
€18.95
Impuestos incluidos
It works with electric programmers of any brand on the market.
characteristics
Pressure: 1.0 to 10.3 bar .
Flow: 0.05 to 6.82 m3 / h.
Temperature: maximum water temperature of 43 ° C; maximum ambient temperature of 52 ° C.
Electric specifications
24 V AC 50/60 HZ solenoid valve .
Maximum input current: 0.250 Amps at 60 Hz .
Holding current: 0.143 Amps at 60 Hz .
Coil resistance: 52 to 55 Ohms.
Dimensions
Height: 11,7 cm
Longitud: 11,2 cm
Ancho: 7,9 cm

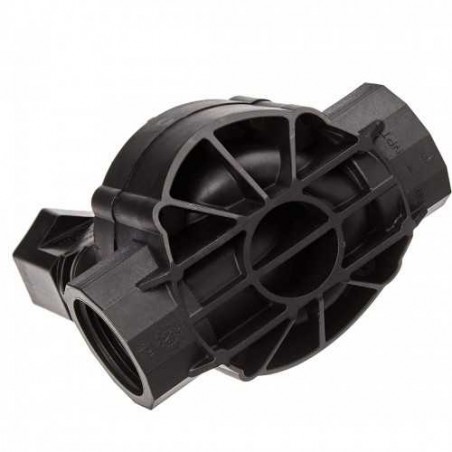

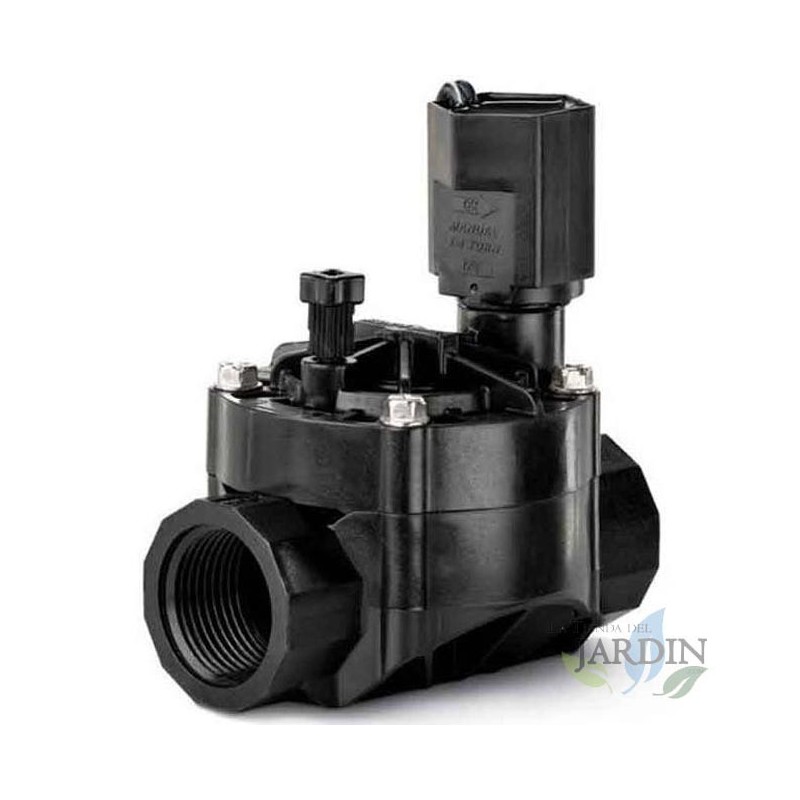

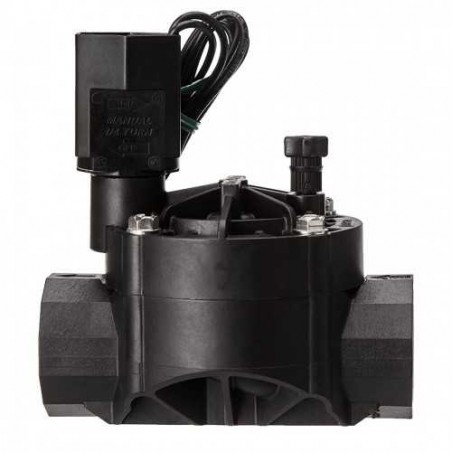

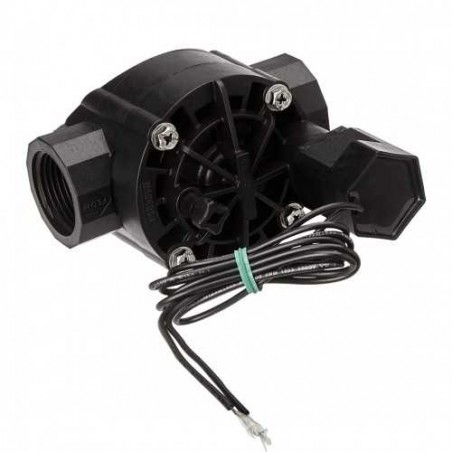

100HV Irrigation Solenoid Valve 1 24V Rain Bird
Rain Bird 100HV 1 24V irrigation solenoid valve works with electric programmers of any brand on the market.
Product Features:
- Pressure: 1.0 to 10.3 bar
- Flow rate: 0.05 to 6.82 m3/h.
- Temperature: Maximum water temperature 43°C; Maximum ambient temperature 52°C.
Frequently Asked Questions:
How is the solenoid valve maintained?

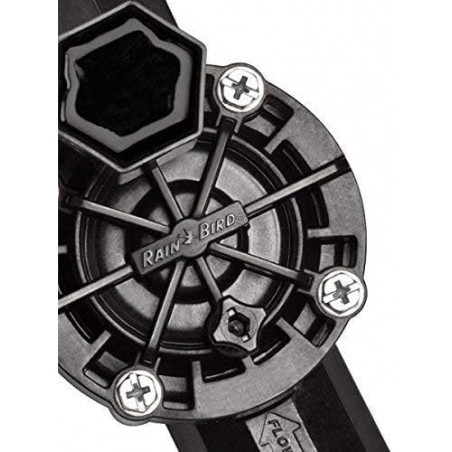

The solenoid valve features multiple connection captive screws for easy maintenance, quick access to the diaphragm with only four screws, and a diaphragm locating element for reliable maintenance.
How reliable is the solenoid valve?
The solenoid valve offers reliability with a glass-filled polypropylene body for strength, normally closed reverse flow design, hassle-free repair with few parts, and a self-cleaning 200 micron pilot filter diaphragm and stainless steel spring.
In which applications is the solenoid valve versatile?
The solenoid valve is versatile, working in low flow and localized irrigation applications when the RBY filter is installed in the front part, with external and internal purge to clean the system manually and manual use without external water loss.
100HV
261 Items
Data sheet
- Color
- Negro
Specific References
Perfecta
Es muy buena ya que se adapta para el programador y va perfectamente
