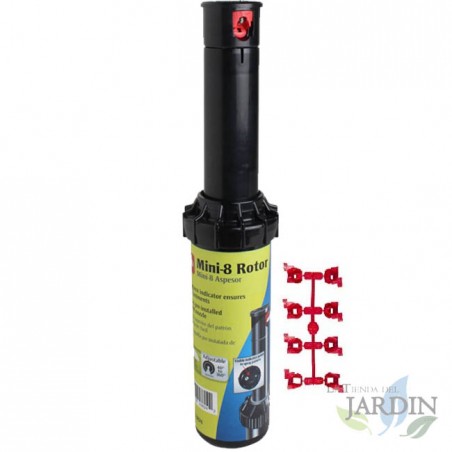

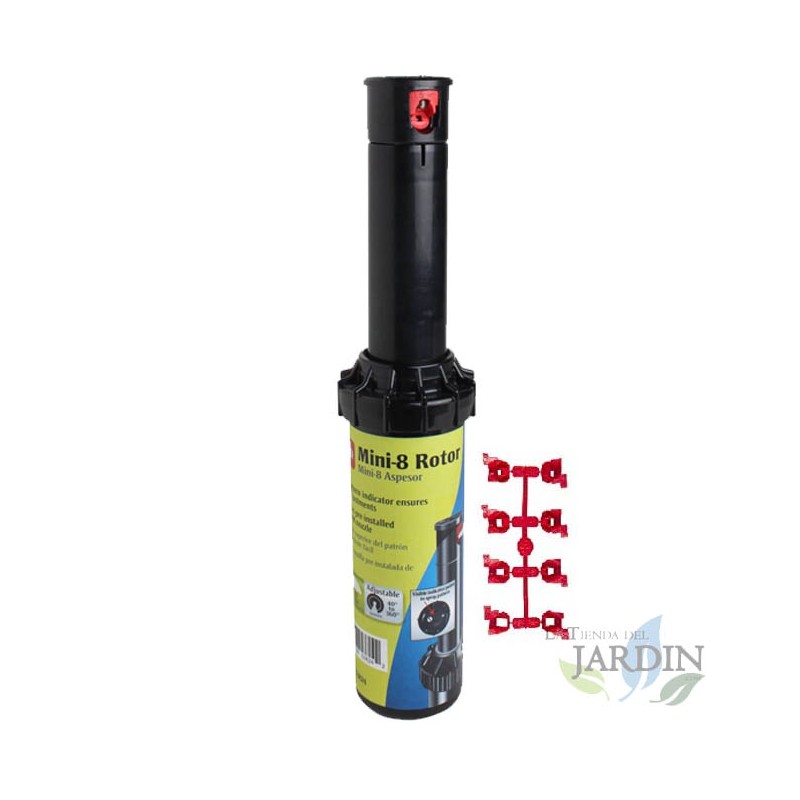

Toro MINI8 1/2 Turbine Sprinkler

The Mini 8 Turbine Sprinkler is perfectly suited to those irrigation areas where the spray head does not reach far enough, but the area to be irrigated is too small for a longer range sprinkler. Using a 1⁄2” turbine sprinkler you can irrigate more efficiently, saving water and money. The cost per square metre is lower than with spray heads, and it also requires fewer irrigation stations. Range: 6-10.7 m. Minimum range using the range reduction screw: 2.9 m. Pressure: 1.7-3.8 bar. Flow rate: 0.12-1.04m3/h. 1/2” (15/21) female threaded inlet. Sector adjustment: 40°-360°. Recommended working pressure: 2.4-3.5 bar. Supplied with a six-nozzle tree that provides: Large droplets for better performance. Effective irrigation in areas close to the sprinkler. Uniform distribution throughout the entire range.

Product Features:

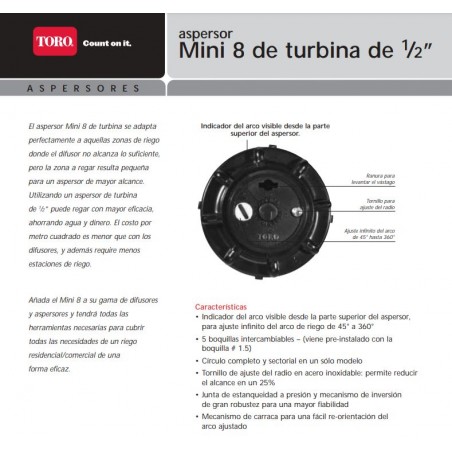

• Arc indicator visible from top of sprinkler, for infinite irrigation arc adjustment from 45° to 360°
• 5 Interchangeable Nozzles – (Comes pre-installed with nozzle #1.5)
• Full circle and sectorial in a single model
• Stainless steel radius adjustment screw: allows the range to be reduced by 25%

Frequently Asked Questions:

What is the maximum range of the sprinkler?
The maximum range of the sprinkler is 10.7 meters.

Does it come with interchangeable nozzles?
Yes, the sprinkler comes with 5 interchangeable nozzles, with #1.5 being pre-installed.

What is the recommended working pressure?
The recommended working pressure is 2.4-3.5 bar.

What type of nozzles are included with the sprinkler?
Nozzles that provide large droplets for better performance and even distribution throughout the entire spray range are included.

Can the irrigation arc be adjusted?
Yes, the irrigation arc can be adjusted from 45° to 360° infinitely.
