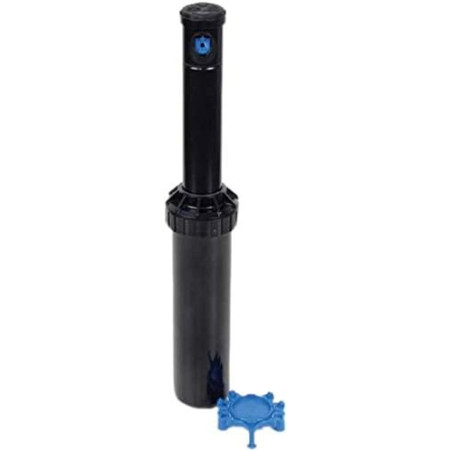

Aspersor Rain Bird 3504-PC

The Rain Bird 3504-PC sprinkler is a high-efficiency solution designed for irrigation systems in residential gardens and medium-sized green areas. This model stands out for its adjustable angle and range , which varies from 4.6 to 10.7 meters , ensuring optimal ground coverage. With a 1/2” (15/21) female thread , the sprinkler is easy to integrate into various automated or manual irrigation systems, offering great versatility.

Product Features:

• Adjustable range : Between 4.6 and 10.7 meters , with the option to reduce the range up to 2.9 meters using the range reduction screw.
• Recommended pressure : Works efficiently with a pressure of 1.7 to 3.8 bars .
• Flow rate : Ranges between 0.12 and 1.04 m³/h , ensuring efficient irrigation without wasting water.
• Adjustable irrigation angle : Allows you to customize the irrigation sector between 40° and 360° , making it suitable for different shapes of gardens and green areas.
• 1/2” Female Threaded Inlet : Easy to install and compatible with a wide range of pipes.

Frequently Asked Questions:

*How do I adjust the watering angle of the Rain Bird 3504-PC Sprinkler?*
The Rain Bird 3504-PC sprinkler's watering angle is manually adjusted by turning the top of the sprinkler. You can set it between 40° and 360° , depending on the needs of your area.

*Is it possible to reduce the range of the Rain Bird 3504-PC Sprinkler without changing the nozzle?*
Yes, the Rain Bird 3504-PC includes a reduction screw that allows the range to be reduced up to 9.5 feet (2.9 meters ) without having to replace the nozzle.

*What is the proper water pressure for optimal performance of the Rain Bird 3504-PC Sprinkler?*
This sprinkler works best with a water pressure between 1.7 and 3.8 bar (350 to 500 psi), which ensures efficient and uniform watering.

*What nozzles does the Rain Bird 3504-PC Sprinkler use?*
The sprinkler is equipped with Rain Curtain™ nozzles , designed to improve water distribution, ensuring larger droplets that better resist wind and maximize irrigation efficiency.

*What maintenance does the Rain Bird 3504-PC Sprinkler require?*
Maintenance on the Rain Bird 3504-PC is minimal. It is recommended to clean the nozzles periodically and check the filter to prevent clogging, especially in areas with mineral-rich water.
