Rainbird irrigation diffuser

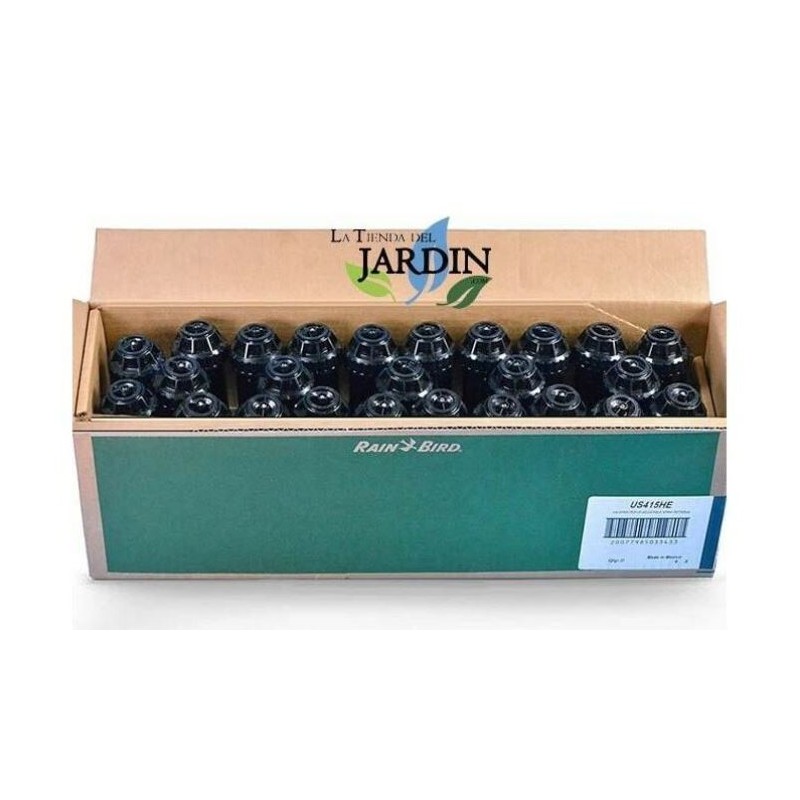

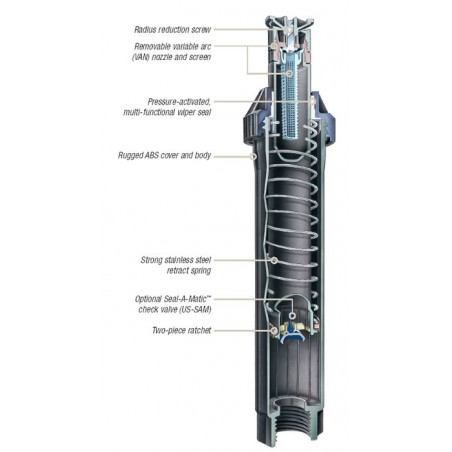

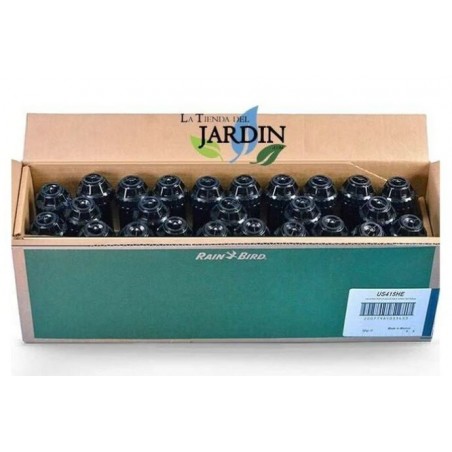

Rainbird US415HE 4'' Pop-Up Spray Head HE15Van Variable Arc Sprinkler Nozzle (25 Pack) Pressure-activated seal prevents flow loss and wasted water. Prevents debris from entering when retracting the stem. Durable two-piece ratchet mechanism allows for quick and easy watering pattern adjustment. Heavy-duty cap and body provide durability under high pressure or system surge conditions.

Product Features:

• Small top, making the diffuser virtually invisible once installed.
• For added convenience, these diffusers are supplied with the VAN nozzles installed.
• Time savings and faster installation: Adjustable Nozzles (VAN) that allow maximum flexibility.
• UNI-Spray™ spray heads can accommodate all Rain Bird® nozzles and accessories, simplifying inventory management.
• The VAN nozzle and filter are easily removable for cleaning.
• The internal parts can be removed from the top, making maintenance easier.
• Scope adjustment screw.

Frequently Asked Questions:

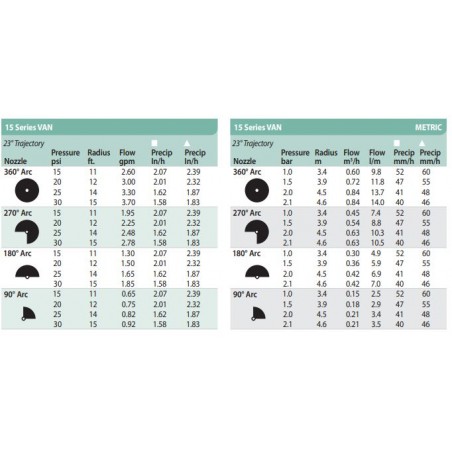

What is the range of the diffuser?
The range is 4.5 m.

How high is the diffuser body?
The height of the body is 15 cm.

What is the recommended operating pressure for this diffuser?
The recommended operating pressure is 1 to 2.1 bar.

Is a pack of sprayers included in the purchase?
Yes, a pack of 25 HEVAN15 irrigation sprayers with nozzles is included.

Can the nozzles on this diffuser be interchanged?
Yes, the nozzles are interchangeable for greater versatility in watering.
