Aspersor Rain Bird 3504-PC

The Rain Bird 3504-PC sprinkler is a high-efficiency solution designed for irrigation systems in residential gardens and medium-sized green areas. This model stands out for its adjustable angle and range , which varies from 4.6 to 10.7 meters , ensuring optimal ground coverage. With a 1/2” (15/21) female thread , the sprinkler is easy to integrate into various automated or manual irrigation systems, offering great versatility.

Product Features:

• Adjustable range : Between 4.6 and 10.7 meters , with the option to reduce the range up to 2.9 meters using the range reduction screw.
• Recommended pressure : Works efficiently with a pressure of 1.7 to 3.8 bars .

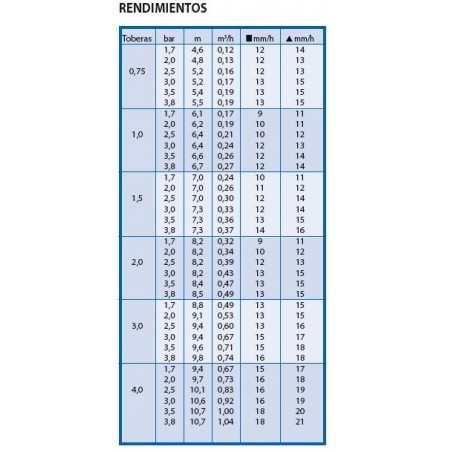

• Flow rate : Ranges between 0.12 and 1.04 m³/h , ensuring efficient irrigation without wasting water.
• Adjustable irrigation angle : Allows you to customize the irrigation sector between 40° and 360° , making it suitable for different shapes of gardens and green areas.
• 1/2” Female Threaded Inlet : Easy to install and compatible with a wide range of pipes.

Frequently Asked Questions:

1. How to adjust the watering angle?
The Rain Bird 3504-PC watering angle is manually adjusted by turning the top of the sprinkler. You can set it between 40° and 360° , depending on the needs of the area.

2. Is it possible to reduce the range without changing the nozzle?
Yes, the Rain Bird 3504-PC includes a reduction screw that allows the range to be reduced up to 2.9 meters without having to replace the nozzle.

3. What is the correct water pressure for optimal performance?
This sprinkler works best with a water pressure ranging from 1.7 to 3.8 bar , which ensures efficient and uniform watering.

4. What nozzles does the Rain Bird 3504-PC use?
The sprinkler is equipped with Rain Curtain™ nozzles , designed to improve water distribution, ensuring larger droplets that better resist wind and maximize irrigation efficiency.

5. What maintenance does this sprinkler require?
Maintenance on the Rain Bird 3504-PC is minimal. It is recommended to clean the nozzles periodically and check the filter to prevent clogging, especially in areas with mineral-rich water.
