Aspersor Rain Bird 5004 PLUS

The Rain Bird 5004-Plus sprinkler is an advanced irrigation system solution that delivers superior performance on large landscaped areas and residential or commercial lawns. Like the 5004-PC, this sprinkler features an adjustable angle and a range of 25 to 50 feet , providing precise and effective coverage with every irrigation. However, the main advantage of the Rain Bird 5004-Plus is its ability to easily stop irrigation by cutting off the water flow from the top of the sprinkler using a flat-head screwdriver . This makes it a more versatile and convenient option for manual control of the irrigation system.

This model also includes a 40 ° to 360° sector adjustment , allowing you to customize the coverage area to suit the needs of your terrain. Additionally, the range reduction screw allows you to decrease the range up to 5.7 meters without changing the nozzle, making it ideal for smaller areas.

The Rain Bird 5004-Plus includes a nozzle set that optimizes irrigation by adjusting the flow rate and water distribution according to the terrain and weather conditions. Its 3/4'' (20/27) female thread ensures easy integration into a wide variety of irrigation systems.

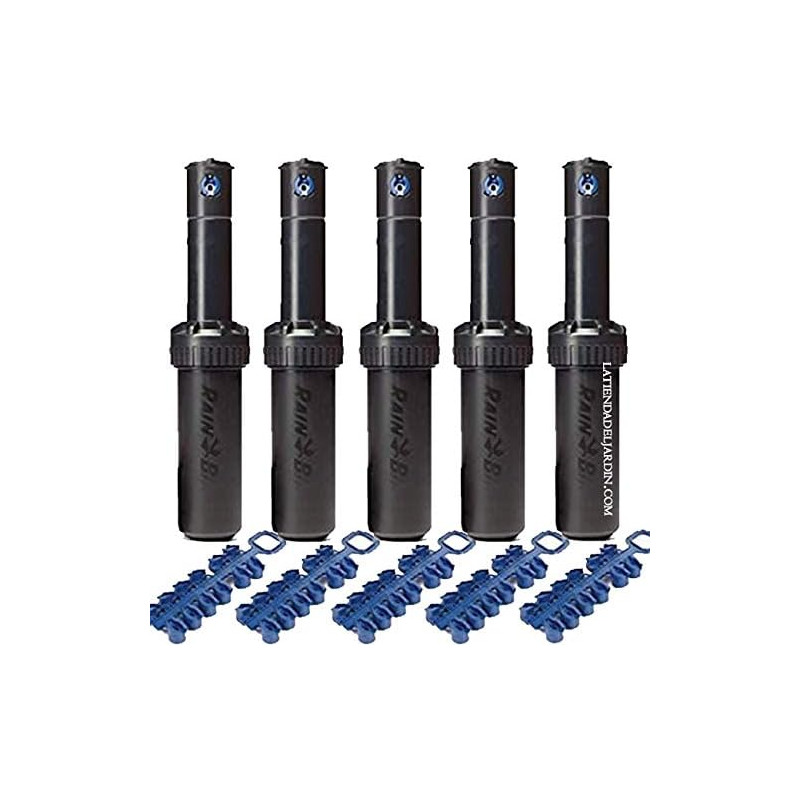

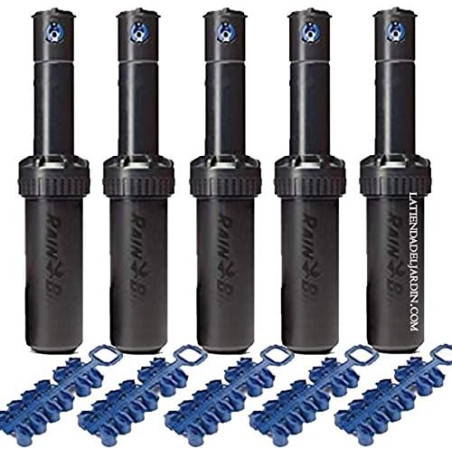

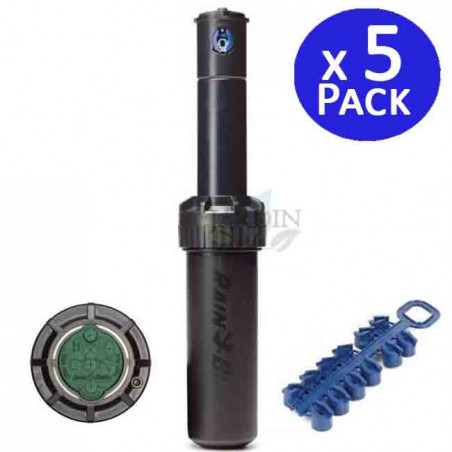

Savings pack of 5 sprinklers.

Product Features:

• Adjustable range : 7.6 to 15.2 meters .
• Minimum reach using the reduction screw : 5.7 meters .
• Pressure : Works efficiently with a pressure of 1.7 to 4.5 bars .
• Flow rate : From 0.17 to 2.19 m³/h , guaranteeing efficient use of water.
• 3/4'' (20/27) female thread : Compatible with multiple irrigation systems.
• Sector adjustment : From 40° to 360° to customize ground coverage.
• Nozzle set included to optimize irrigation and flow.
• Stop irrigation from the top using a flat head screwdriver to easily cut off the water flow.

Frequently Asked Questions:

1. How do I stop watering with the Rain Bird 5004-Plus?
The Rain Bird 5004-Plus allows you to shut off the water flow directly from the top of the sprinkler using a flat-head screwdriver , making it easy to stop watering without having to access the control system.

2. Can I adjust the watering angle?
Yes, the watering angle is easily adjusted between 40° and 360° , providing flexibility in area coverage.

3. Is it possible to reduce the range without changing nozzles?
Yes, the reduction screw allows the range to be reduced up to 5.7 meters without the need to replace nozzles, offering greater versatility.

4. What water pressure is required for optimal performance?
This sprinkler works best with a water pressure ranging from 1.7 to 4.5 bar .

5. What nozzles does this model include?
The Rain Bird 5004-Plus includes a set of nozzles that allows you to adjust the flow and distribution of water according to the needs of your land.
