- Nuevo
KIT Automatic Irrigation 3 zones for electric irrigation. Timer set + Solenoid valves + Installation accessories
€152.66
Impuestos incluidos
10 1/2 "sprinklers with a range of 4.6 to 10.7 m and an adjustable angle of irrigation.
Intended for small and medium-sized residential and public automatic irrigation installations. These sprinklers are designed to work at low pressure and flow with high performance in recycled water.
characteristics
- Alcance: 4,6-10,7 m.
- Minimum reach using reach reduction screw: 2.9 m.
- Pressure: 1.7-3.8 bars.
- Caudal: 0,12-1,04m3/h.
- 1/2 ”(15/21) female threaded socket.
- Sector adjustment: 40 ° -360 °.
Dimensions
Lifting height: 10.2 cm.
Body height: 16.8 cm.
Exposed diameter: 2.9 cm.
Automatic Irrigation Kit

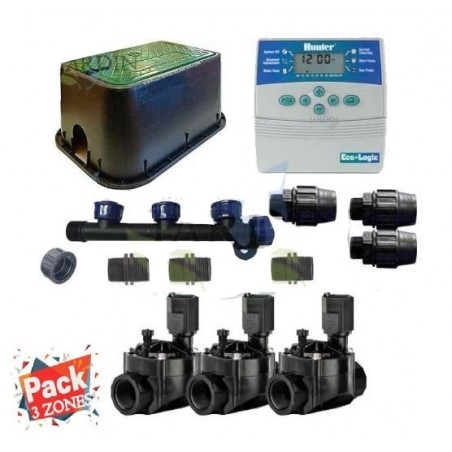

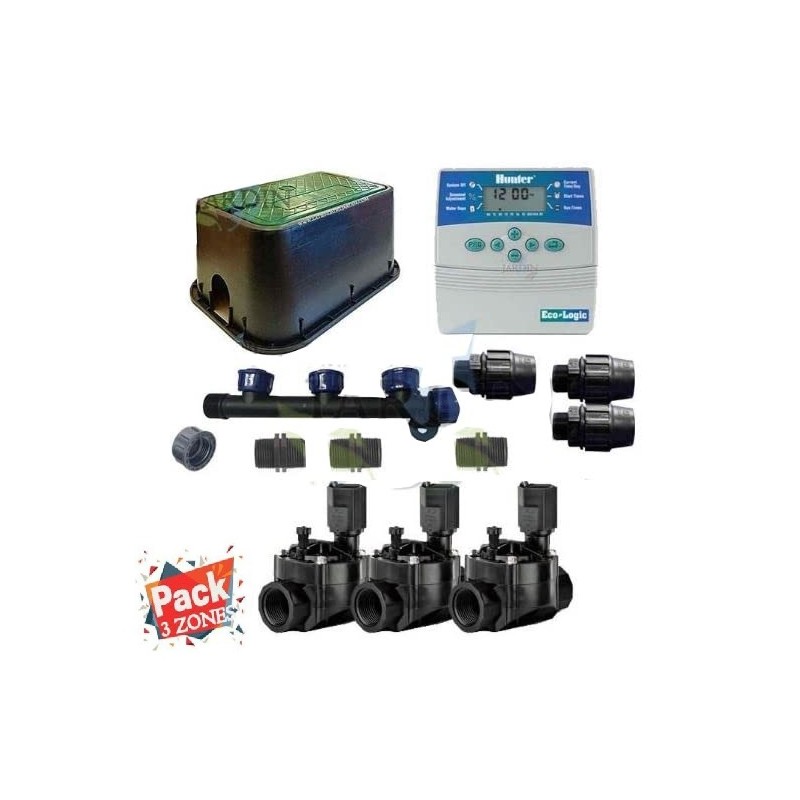

Automatic Irrigation Kit 3 irrigation zones. The automatic irrigation system allows us to automate the irrigation of your garden in an easy and simple way. Automatic irrigation set containing: Electric Programmer 4 irrigation zones, Rain Bird 100HV 24v 1 solenoid valves, Irrigation box, Collector tee and Mounting Accessories.
Product Features:
- Number of stations: 4.
- Wardrobe: Interior.
- Independent programs: 2.
- Start times per program: 4.
Frequently Asked Questions:

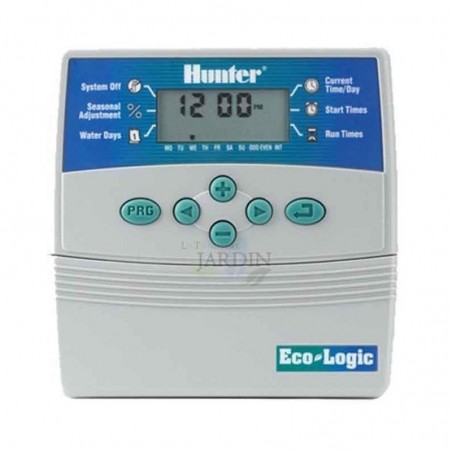

What are the features of the ELC401 Irrigation Programmer?
Number of stations: 4. Cabinet: Indoor. Independent programs: 2. Start times per program: 4. Maximum irrigation times of the stations: 4 h. Compatible with rain sensors of any brand. Programmable rain delay: from 1 to 7 days.
What are the characteristics of the Solenoid Valve?
Pressure: 1.0 to 10.3 bar. Flow rate: 0.05 to 6.82 m3/h. Temperature: maximum water temperature 43°C; maximum ambient temperature 52°C. 24 VAC solenoid valve at 50/60 HZ. Maximum input current: 0.250 Amps at 60 Hz. Holding current: 0.143 Amps at 60 Hz. Coil resistance: 52 to 55 Ohms.
What are the dimensions of the Solenoid Valve?
Height: 11.7 cm. Length: 11.2 cm. Width: 7.9 cm.
Where can I get more technical information?
**Please contact LaTiendadelJardin's technical team for any technical questions.**
Pack1ELC4-HV3
252 Artículos
Ficha técnica
- Color
- Negro
Referencias específicas
No customer reviews for the moment.
