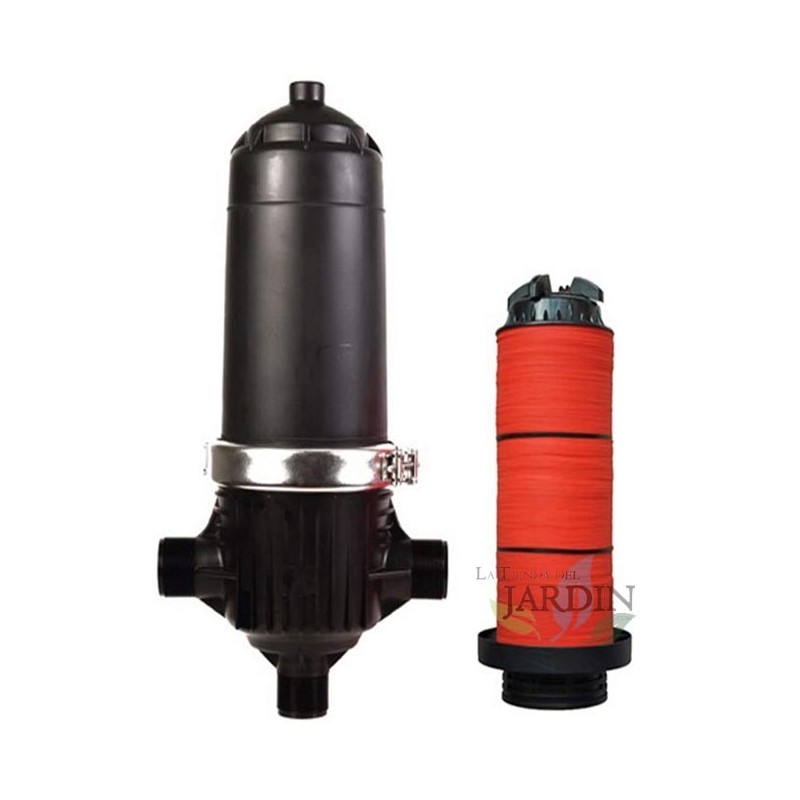

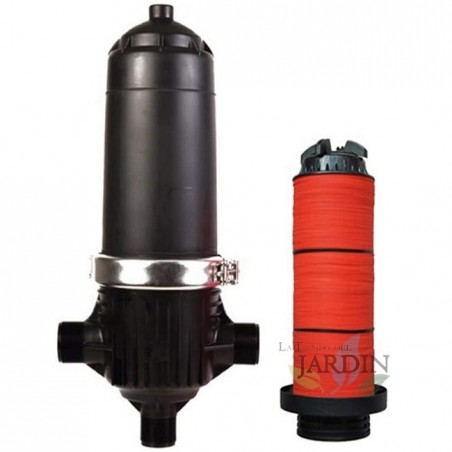

2 long ring disc filter with metal clamp

Professional agricultural filtration with disc or ring filters, recommended for large flow rates with the development of cyclonic technology, guaranteeing the separation of heavy particles in the outer area of ​​the filter, preventing their fixation on the surface of the discs and lengthening the periods between washes as well as reducing wash water.

Product Features:

• Highly resistant and durable polyamide casing.

• Easy installation and maintenance as they are made up of interchangeable modules.

• Standard filtration at 130 microns.

• Threaded connections.

• Oversized long housing allows for increased capacity and delayed filter cleaning.

• Caudal 30 m3/h.

Frequently Asked Questions:

Question 1 What is the filtration capacity of this filter?
The filtration capacity of this filter is standard at 130 microns.

Question 2 What material is used in the housing of this filter?
The housing is made of polyamide, a highly resistant and durable material.

Question 3 Is it easy to install and maintain?
Yes, this filter is easy to install and maintain thanks to its interchangeable modules.

Question 4 What flow rate can this filter handle?
The filter can handle a flow rate of 30 m3/h.

Question 5 How is the filter cleanliness guaranteed?
The large, long housing allows for delayed filter cleaning, extending the periods between washes.
