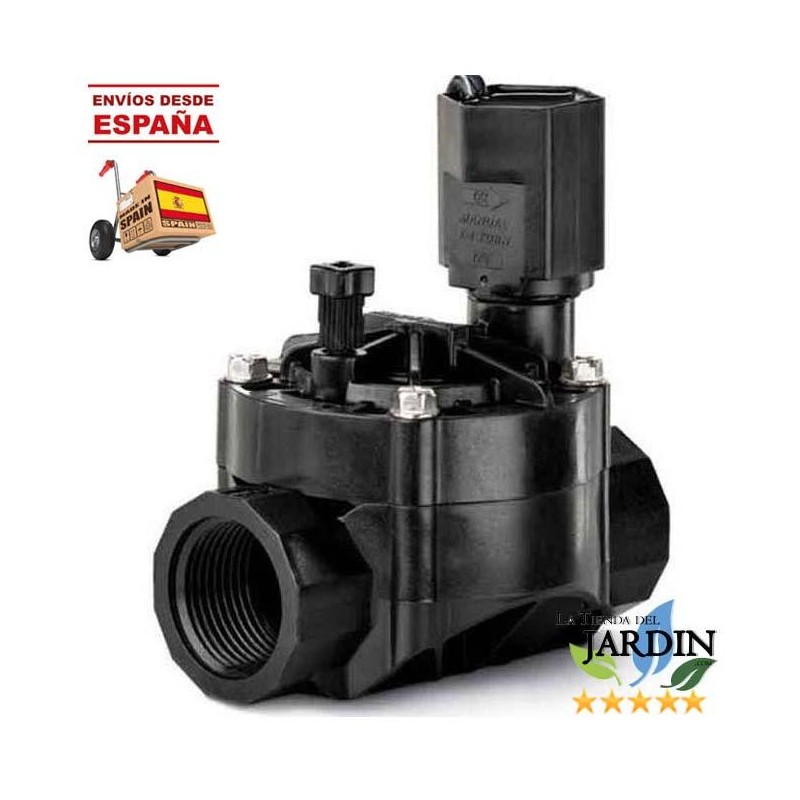

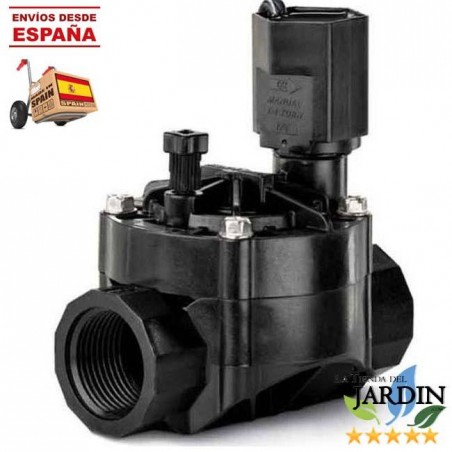

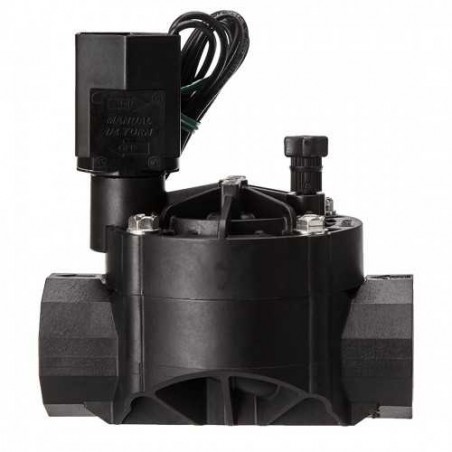

Electrovalvula de riego Rain Bird 100HV 1 24V

Rain Bird 100HV 1 24V irrigation solenoid valve for electric irrigation programmers. Works with electric programmers of any brand on the market.

Product Features:

• Pressure: 1.0 to 10.3 bar


• Flow rate: 0.05 to 6.82 m3/h


• Temperature: Maximum water temperature 43°C; Maximum ambient temperature 52°C

Frequently Asked Questions:

How do I maintain the Rain Bird 100HV 1 24V Irrigation Solenoid Valve?
- Multiple captive connections for easy maintenance.
- Quick access to the diaphragm with only four screws.
- Diaphragm locating element for reliable maintenance.

How reliable is the Rain Bird 100HV 1 24V Irrigation Solenoid Valve?
- Fiberglass-coated polypropylene body for strength.
- Normally closed, reverse flow design.
- Hassle-free repair with few parts.
- Self-cleaning 200-micron pilot filter diaphragm and stainless steel spring.

What applications can the Rain Bird 100HV 1 24V Irrigation Solenoid Valve be used for?
- Works in low flow and localized irrigation applications when the RBY filter is installed up front.
- External purge to manually flush the system and remove dirt particles during system installation and start-up.
- Internal purge for manual use without external water loss.
