Self-compensating dripper

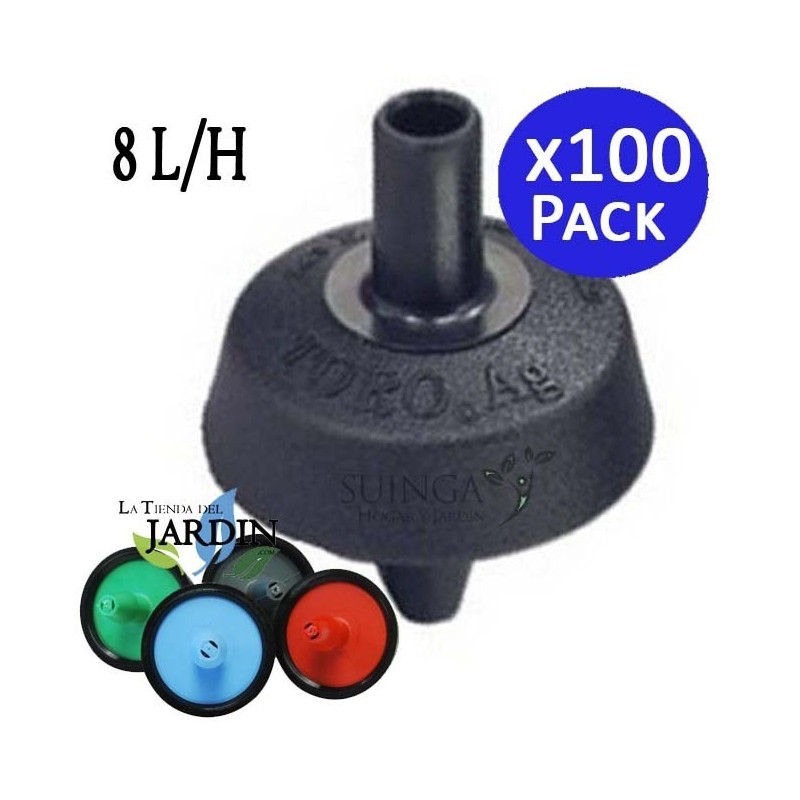

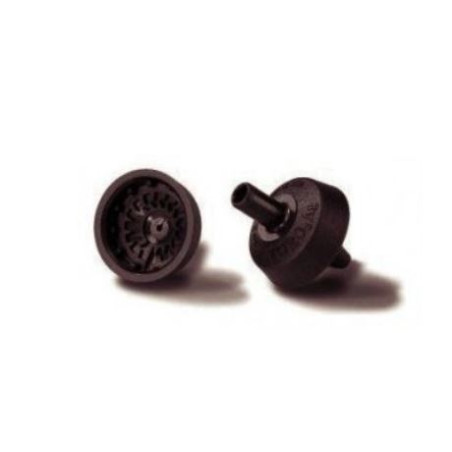

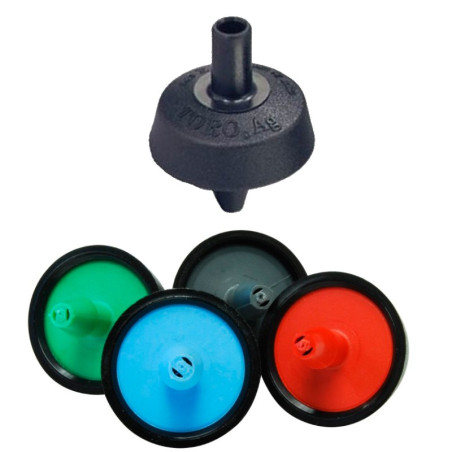

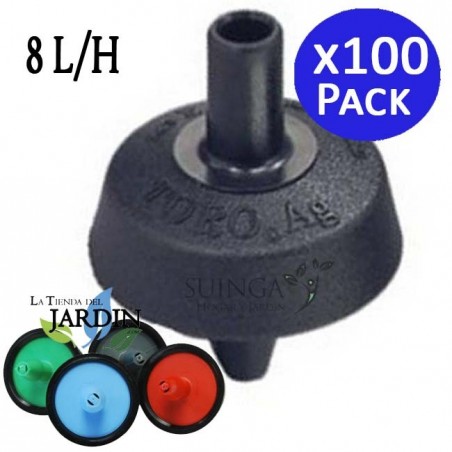

100 Self-Compensating, Anti-Drain Drippers 8 litres per hour. Toro's New Generation Dripper (NGE) has been designed to meet the special demands of the most demanding drip irrigation installations. Thanks to its unique design and pressure compensating diaphragm, the NGE provides unrivalled protection against clogging. This adjustable dripper connects directly to 16-32mm irrigation tubing or to the end of 5mm drip tube (Microtube 4.5 x 6.5mm). Recommended pressure 1-2.5 bar. Thanks to its uniform flow rate, the NGE is ideal for difficult topographical conditions. A self-cleaning feature ensures the dripper is free of debris during use and closure, and the anti-siphon feature protects against siphoning. The unique dripper design and self-compensating diaphragm prevent the dripper from emptying at pressures below 0.1-0.2 bar, which in turn prevents complete system emptying and reduces the time required to fill the system during start-up, improving overall performance. The NGE is rated as one of the best pressure-compensating drippers in the industry, with a coefficient of variation of 3% or less, as tested by Toro and independent laboratories.

Product Features:

• 100 Self-Compensating and Anti-Drainage Drippers
• Flow rate of 8 liters per hour
• Direct connection to 16 to 32mm irrigation pipe or 5mm drip tube
• Recommended pressure 1 to 2.5 bar

Frequently Asked Questions:

How do you connect the self-compensating dripper?
It connects directly to the irrigation pipe or to the end of a drip tube.

What is the water flow rate of the dripper?
The flow rate is 8 liters per hour.

What pressure is recommended for the dripper to operate?
A pressure of 1 to 2.5 bar is recommended.

What protection does the dripper offer against clogging?
The pressure compensating diaphragm provides unmatched protection against clogging.

What is the coefficient of variation of the dripper?
The coefficient of variation is 3% or less, based on tests performed by Toro and independent laboratories.
