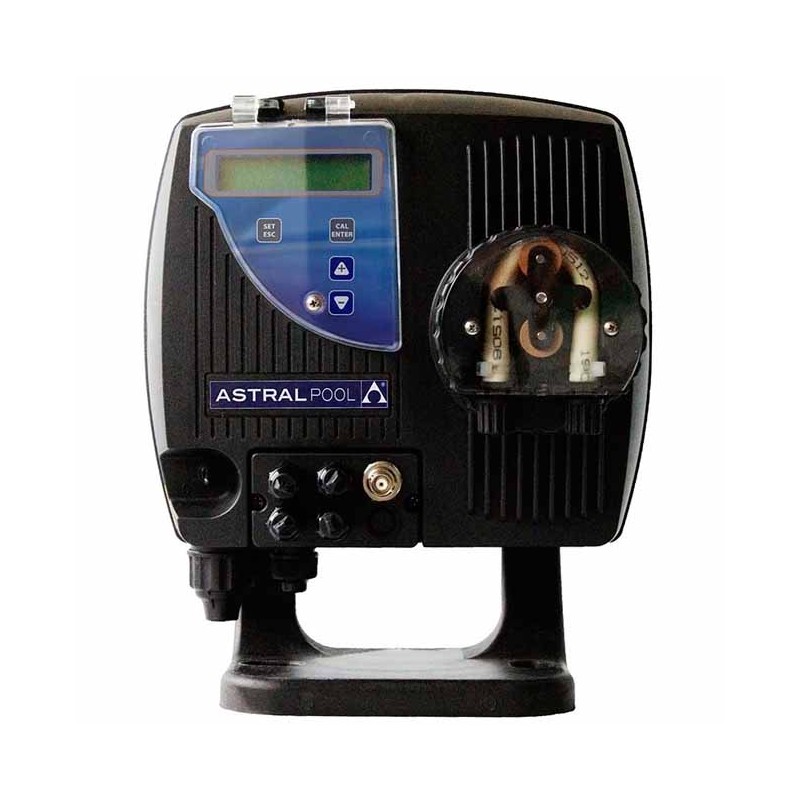

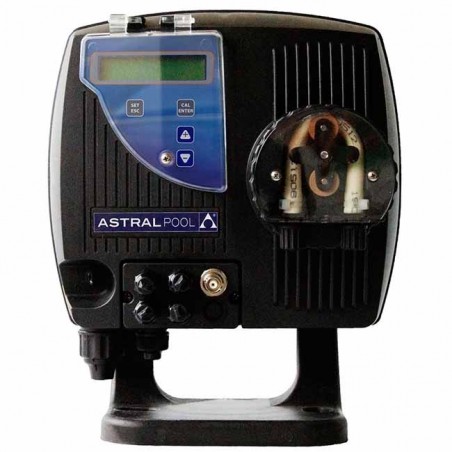

Control Basic Plus

Control and dosing equipment that automatically measures the pH or Redox of the pool. Recommended for installation in conjunction with the Sel Pure, Sel Clear, Smart and Smart salt chlorinators. Installation kit included. Supplied without electrodes (sensors) or calibration solutions. Easy-to-read 2-line, 16-character backlit LCD display. Self-calibration of sensors. Quality control of electrodes. Dosing pause due to alarm and indication by flashing LED. Proportional dosing. Adjustable set-point. Flow rate: 5 l/h. Back pressure: 1.5 bar. pH measurement range: 0.00…14.00 pH. Redox measurement range: -999… 999 mV. Switch. Alarm relay. Minimum chemical level input. PT100 temperature input (optional sensor).

Product Features:

• Auto calibration of sensors
• Quality control of electrodes
• Dosing pause due to alarm situation and indication by flashing LED
• Adjustable set-point

Frequently Asked Questions:

How is sensor calibration performed?
Sensor calibration is performed automatically by the equipment.

What happens if the minimum chemical level is reached?
The equipment has a minimum level input that activates an alarm to alert the user.

Can different electrodes be used with this device?
Yes, different electrodes can be used as long as they are compatible with the device.

Do I need to purchase calibration solutions separately?
Yes, calibration solutions are not included and must be purchased separately.

Can the dosing flow rate be adjusted?
Yes, the dosing flow rate is adjustable according to the needs of the pool.
